SKU: MSC50-RHP

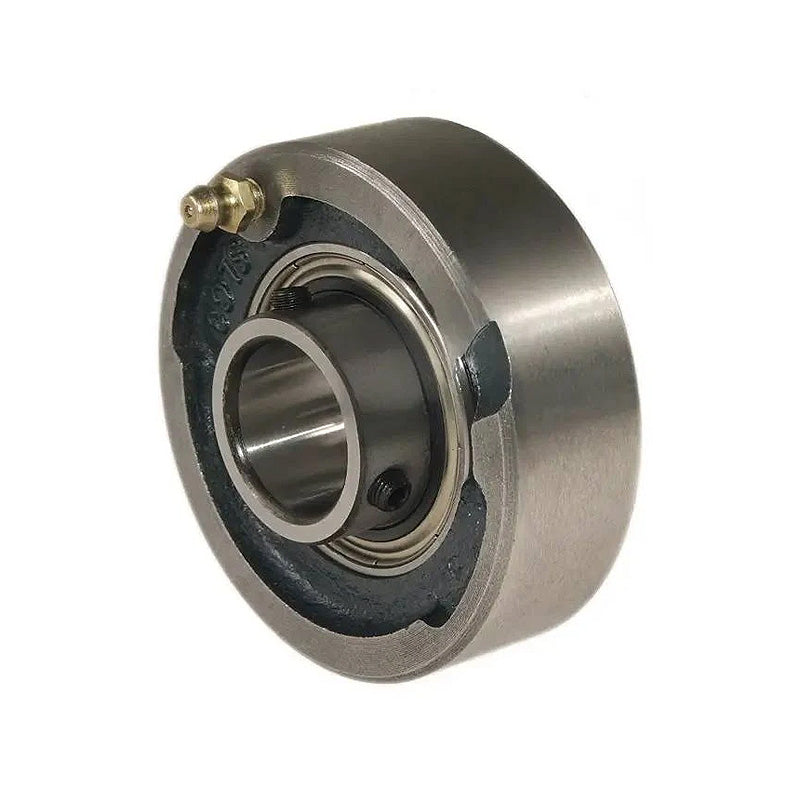

RHP MSC50 Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
RHP MSC50 Cast Iron Cartridge Unit with 50mm Bore Insert 115.91mm Outside Diameter
Regular price
$166.91
ex VAT
Regular price
Sale price
$166.91
ex VAT
In stock
Price Break
10+
$148.55
19+
$140.20
29+
$138.54
39+
$136.87
49+
$135.20
74+
$133.53
99+
$125.18
199+
$123.51
249+
$121.84
499+
$120.18
999+
$116.84
Couldn't load pickup availability
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 115.91mm
- Style:
- MSC
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 115.913mm |
| A | 37.31mm |
| A1 | 51.18mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2 |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rex max speed | 3400 rpm |
| Weight | 2.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
