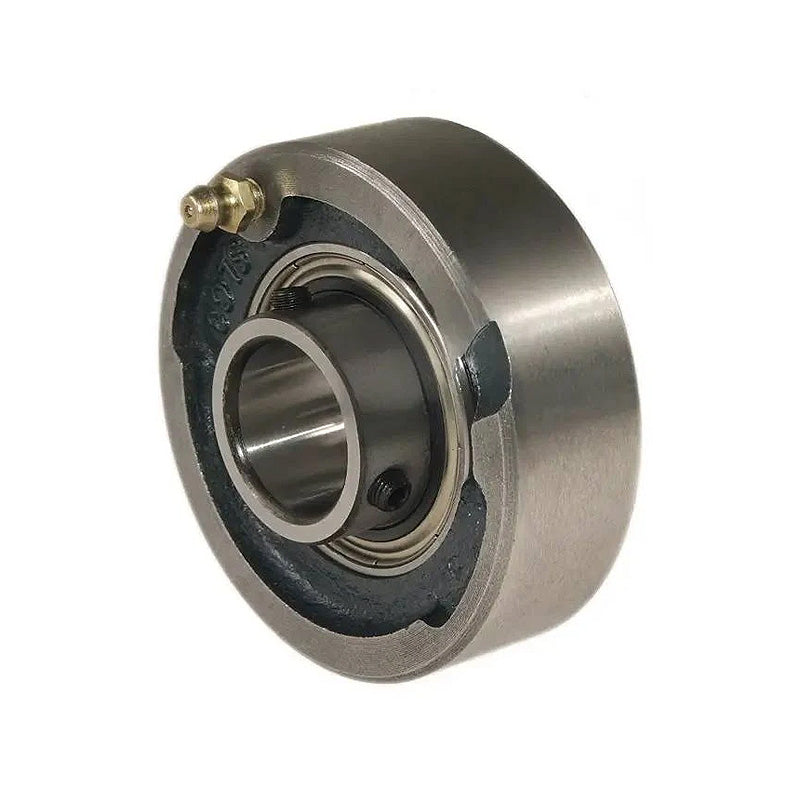

• RHP MSC45 Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
1 1

SKU: MSC45-RHP

RHP MSC45 Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter

RHP MSC45 Cast Iron Cartridge Unit with 45mm Bore Insert 111.15mm Outside Diameter
$141.29 ex VAT
$141.29 ex VAT
Sale Sold out

In stock

Price Break
10+ $125.75
19+ $118.68
29+ $117.27
39+ $115.86
49+ $114.44
74+ $113.03
99+ $105.97
199+ $104.55
249+ $103.14
499+ $101.73
999+ $98.90
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, heavy duty full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Outside Diameter:
111.15mm
Style:
MSC
Technical
Bore 45mm
L 111.15mm
A 36.51mm
A1 48.44mm
B 49.23mm
s 19.1mm
d1 57.3
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rex max speed 3700 rpm
Weight 2.1 kg
Insert <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
