SKU: MS3196-SKF

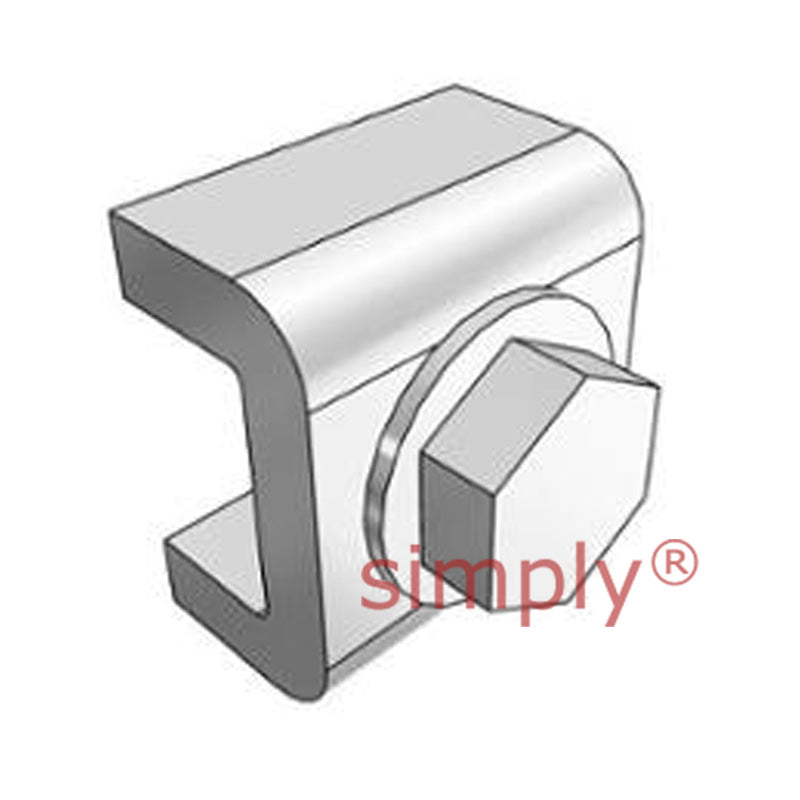

SKF MS3196 Locking Clip 36mm Wide
SKF MS3196 Locking Clip 36mm Wide
Regular price
$290.49
ex VAT
Regular price
Sale price
$290.49
ex VAT
In stock
Price Break
10+
$258.54
19+
$244.01
29+
$241.11
39+
$238.20
49+
$235.30
74+
$232.39
99+
$217.87
199+
$214.96
249+
$212.06
499+
$209.15
999+
$203.34
Couldn't load pickup availability
Description
Description
|
SKF Locking Clips: Can be used with lock nuts as an alternative to a lock washer, locates in one of the cutouts around the perimeter of the nut and located in the shaft key way, is located by a set screw into the face of the nut. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 36mm
Technical
Technical
| B | 36mm |
|---|---|
| M | 15mm |
| M1 | 5mm |
| M2 | 53mm |
| M3 | 18mm |
| Weight | 0.11 kg |
| Screw | M16x30 |
| Spring washer Din128 | A16 |
