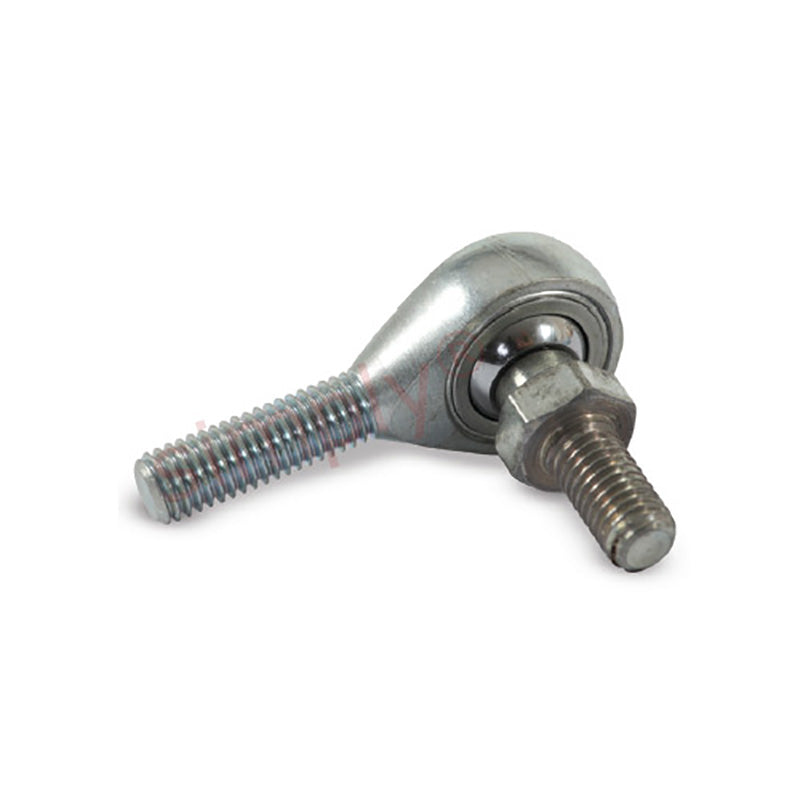

• Branded MS-M10S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Male Rod End M10x1.5 Thread - Allow 7-10 Days
1 1

SKU: MS-M10S-MB

Branded MS-M10S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Male Rod End M10x1.5 Thread - Allow 7-10 Days

Branded MS-M10S Right Hand Metric Steel / PTFE Lined Maintenance Free Studded Male Rod End M10x1.5 Thread - Allow 7-10 Days
$25.87 ex VAT
$25.87 ex VAT
Sale Sold out

Equivalent to: POS10+STUD

In stock

Price Break
10+ $12.22
19+ $11.53
29+ $11.40
39+ $11.26
49+ $11.12
74+ $10.98
99+ $10.30
199+ $10.16
249+ $10.02
499+ $9.89
999+ $9.61
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

MSS Studded Series Maintenance Free Male Rod Ends: These studded steel on steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance

Equivalent: POS10+STUD
Brand / Quality:
Major Brand - High Quality
Thread Size:
M10x1.5
Thread M / F:
Male
Thread Direction:
Right Hand
Material:
PTFE Lined
Technical
Stud size M10
Thread M10x1.5
A 20mm
B 20mm
C 18mm
K 17mm
Static load 4240 N
