SKU: MP3-RHP

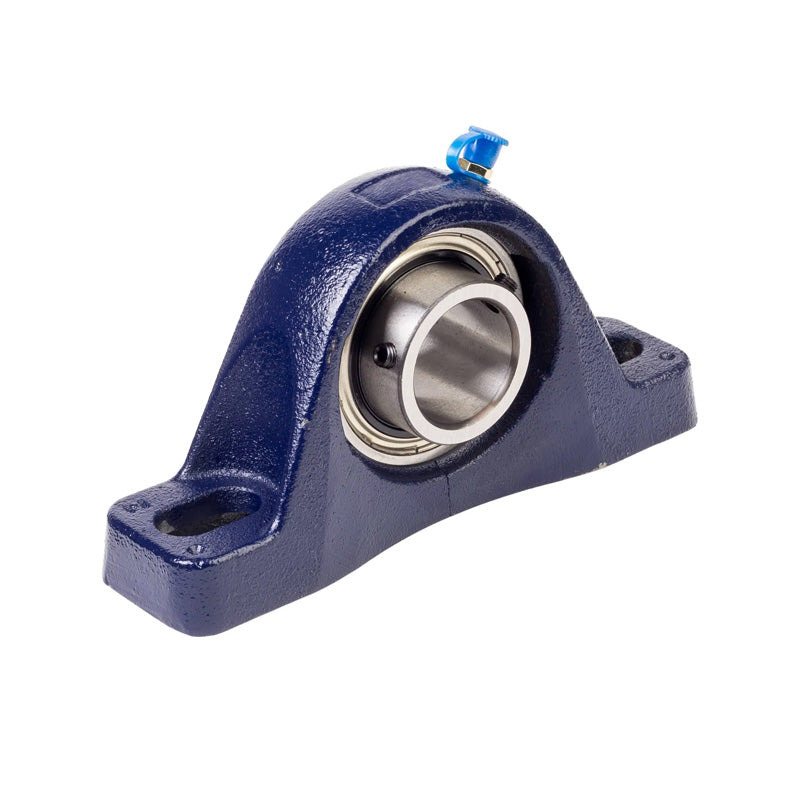

RHP MP3 Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Insert
RHP MP3 Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Insert
Regular price
$510.97
ex VAT
Regular price
Sale price
$510.97
ex VAT
In stock
Price Break
10+
$454.76
19+
$429.21
29+
$424.11
39+
$419.00
49+
$413.89
74+
$408.78
99+
$383.23
199+
$378.12
249+
$373.01
499+
$367.90
999+
$357.68
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- MP
- Bolt Hole Centres:
- 8.976-10.063 inch
Technical
Technical
| Bore | 3 inch |
|---|---|
| L | 13 inch |
| H | 3.5 inch |
| H1 | 1.252 inch |
| H2 | 7.252 inch |
| J max | 10.063 inch |
| J min | 8.976 inch |
| G | 1 inch |
| A | 3.5 inch |
| A1 | 2.626 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 14.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
