SKU: MP-03-MB

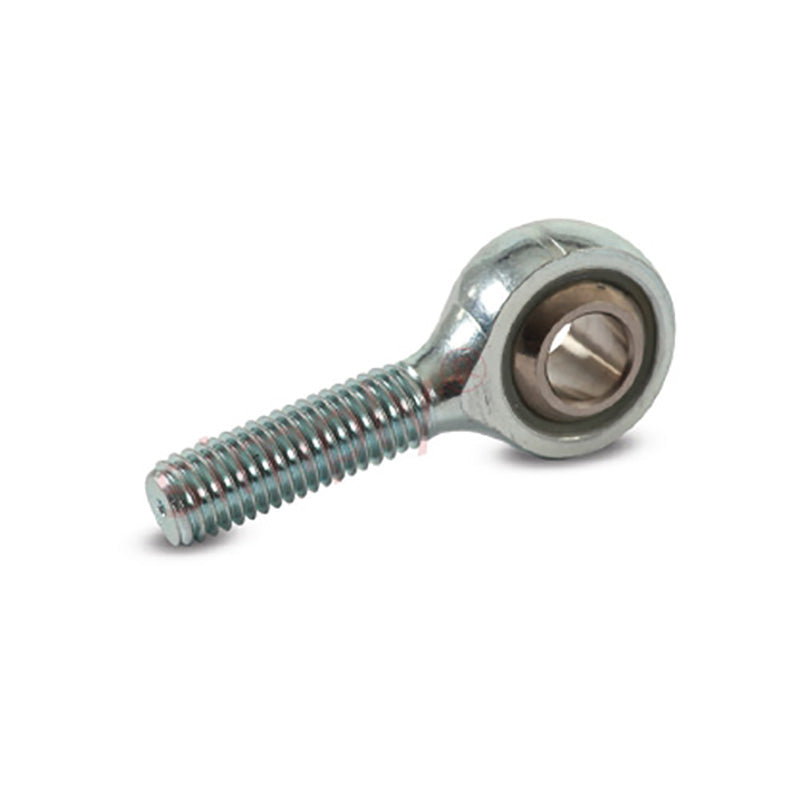

Branded MP-03 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/16 UNF Thread
Branded MP-03 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/16 UNF Thread
Regular price
$16.13
ex VAT
Regular price
Sale price
$16.13
ex VAT
In stock
Price Break
10+
$7.62
19+
$7.19
29+
$7.10
39+
$7.02
49+
$6.93
74+
$6.85
99+
$6.42
199+
$6.33
249+
$6.25
499+
$6.16
999+
$5.99
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 3/16 UNF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 4.76mm = 0.187 (3/16) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 3/16 inch |
|---|---|
| Thread | 3/16 UNF |
| W | 0.312 inch |
| H | 0.25 inch |
| D | 0.625 inch |
| L1 | 1.25 inch |
| L2 | 0.75 inch |
| O | 0.306 inch |
| Static load | 5340 N |
