SKU: MJ.1-5/8.NR.EU

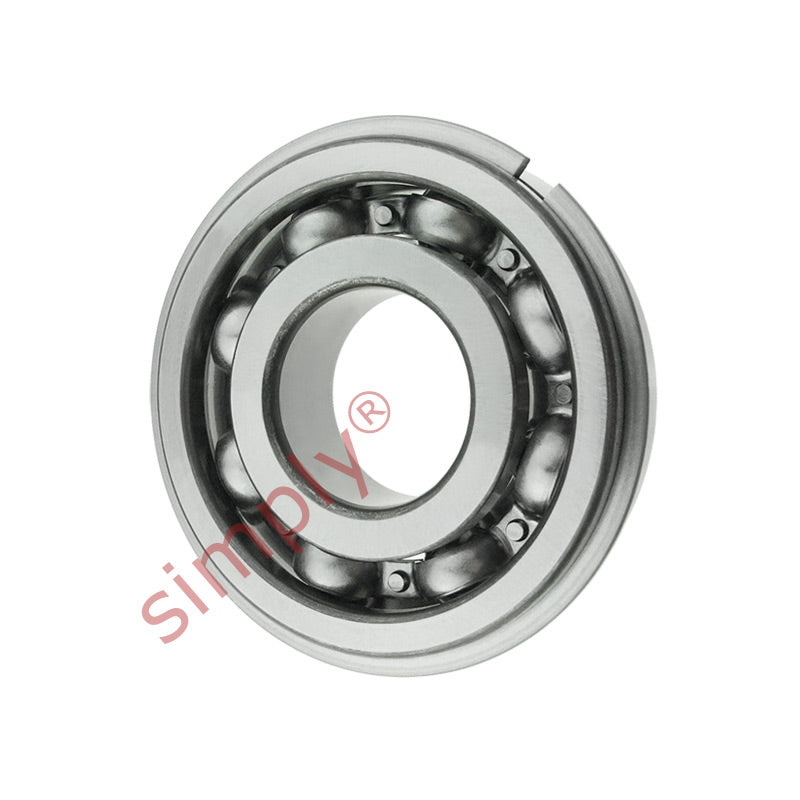

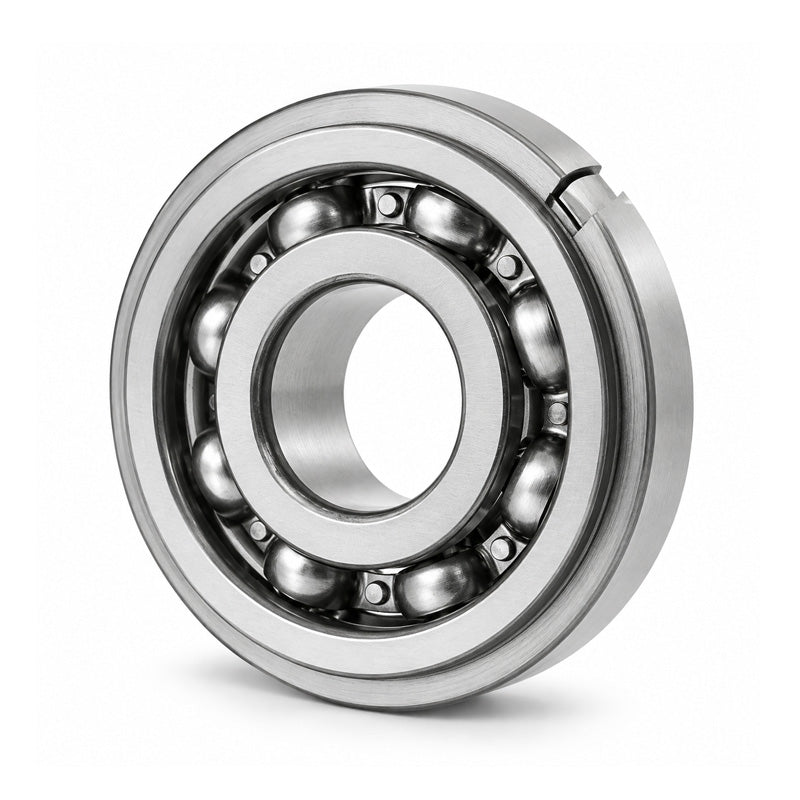

MJ1-5/8NR Imperial Open Snap Ring Bearing 1-5/8x4x15/16 inch
MJ1-5/8NR Imperial Open Snap Ring Bearing 1-5/8x4x15/16 inch
Regular price
$113.06
ex VAT
Regular price
Sale price
$113.06
ex VAT
In stock
Price Break
10+
$100.62
19+
$94.97
29+
$93.84
39+
$92.71
49+
$91.58
74+
$90.45
99+
$84.80
199+
$83.66
249+
$82.53
499+
$81.40
999+
$79.14
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 23.81mm = 0.937 (15/16) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore | 1.625 inch |
|---|---|
| Outside Diameter | 4 inch |
| Width | 0.9375 inch |
| Weight | 0.5 kg |
