SKU: MFC40-RHP

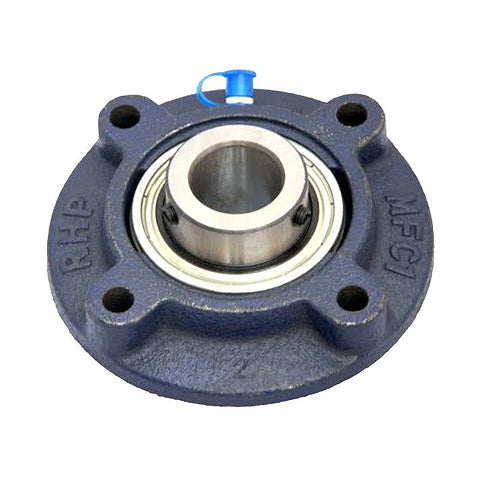

RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP MFC40 Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
$171.20
ex VAT
Regular price
Sale price
$171.20
ex VAT
In stock
Price Break
10+
$152.37
19+
$143.81
29+
$142.10
39+
$140.38
49+
$138.67
74+
$136.96
99+
$128.40
199+
$126.69
249+
$124.98
499+
$123.26
999+
$119.84
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- MFC
- Pitch Circle Diameter:
- 111.12mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 133.4mm |
| H | 92.07mm |
| J | 111.12mm |
| G | 10mm |
| A1 | 38.1mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
