SKU: MFC30-RHP
RHP MFC30 Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP MFC30 Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price
$153.30
ex VAT
Regular price
Sale price
$153.30
ex VAT
In stock
Price Break
10+
$136.44
19+
$128.77
29+
$127.24
39+
$125.71
49+
$124.17
74+
$122.64
99+
$114.98
199+
$113.44
249+
$111.91
499+
$110.38
999+
$107.31
Couldn't load pickup availability
Description
Description
|

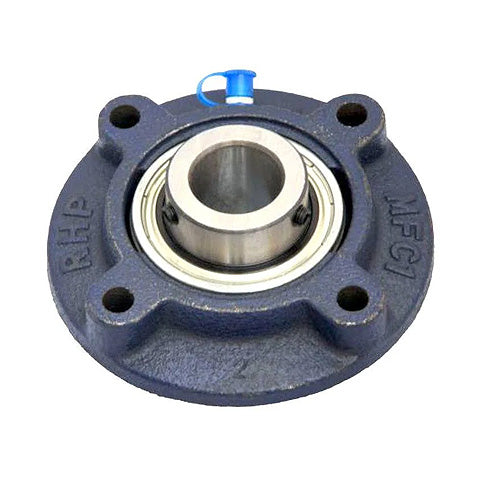

RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- MFC
- Pitch Circle Diameter:
- 104.78mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 127mm |
| H | 85.72mm |
| J | 104.78mm |
| G | 10mm |
| A1 | 33.32mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-30G+insonly">1035-30G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
