SKU: MFC3.1/2-RHP

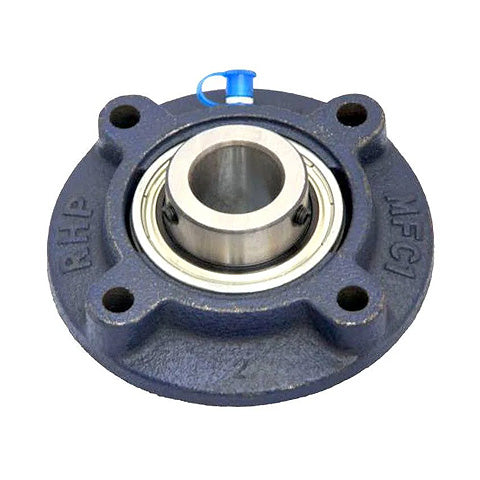

RHP MFC3-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/2 inch Insert
RHP MFC3-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/2 inch Insert
Regular price
$695.98
ex VAT
Regular price
Sale price
$695.98
ex VAT
In stock
Price Break
10+
$619.42
19+
$584.62
29+
$577.66
39+
$570.70
49+
$563.74
74+
$556.78
99+
$521.99
199+
$515.03
249+
$508.07
499+
$501.11
999+
$487.19
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 219.08mm = 8.625 inch
Technical
Technical
| Bore | 3-1/2 inch |
|---|---|
| L | 10.252 inch |
| H | 7.375 inch |
| J | 8.625 inch |
| G | 0.75 inch |
| A1 | 2.656 inch |
| A4 | 1.157 inch |
| A5 | 0.5 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| Dynamic load | 96000 N |
| Static load | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 9.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-3-1/2G+insonly">1090-3-1/2G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
