SKU: MB29-SKF

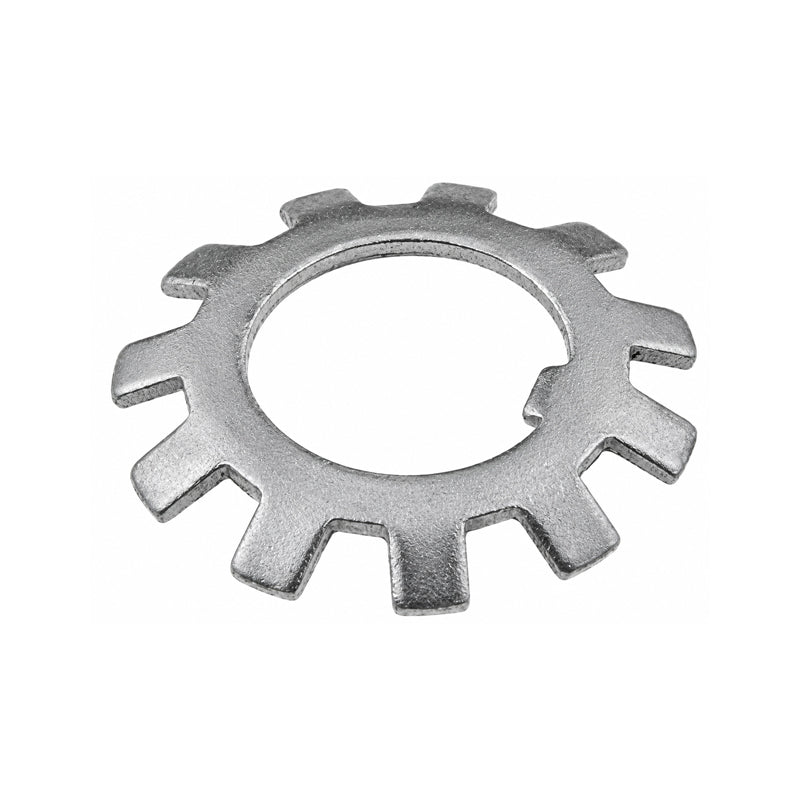

SKF MB29 Locking Tab Washer 145x202x2mm
SKF MB29 Locking Tab Washer 145x202x2mm
Regular price
$23.54
ex VAT
Regular price
Sale price
$23.54
ex VAT
In stock
Price Break
10+
$11.12
19+
$10.49
29+
$10.37
39+
$10.24
49+
$10.12
74+
$9.99
99+
$9.37
199+
$9.24
249+
$9.12
499+
$8.99
999+
$8.74
Description
Description
|
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 145mm
Technical
Technical
| d | 145mm |
|---|---|
| d1 | 172mm |
| d2 | 202mm |
| B | 2mm |
| f | 16mm |
| M | 140mm |
| Weight | 0.17 kg |
