SKU: M-UCC210D1-NTN

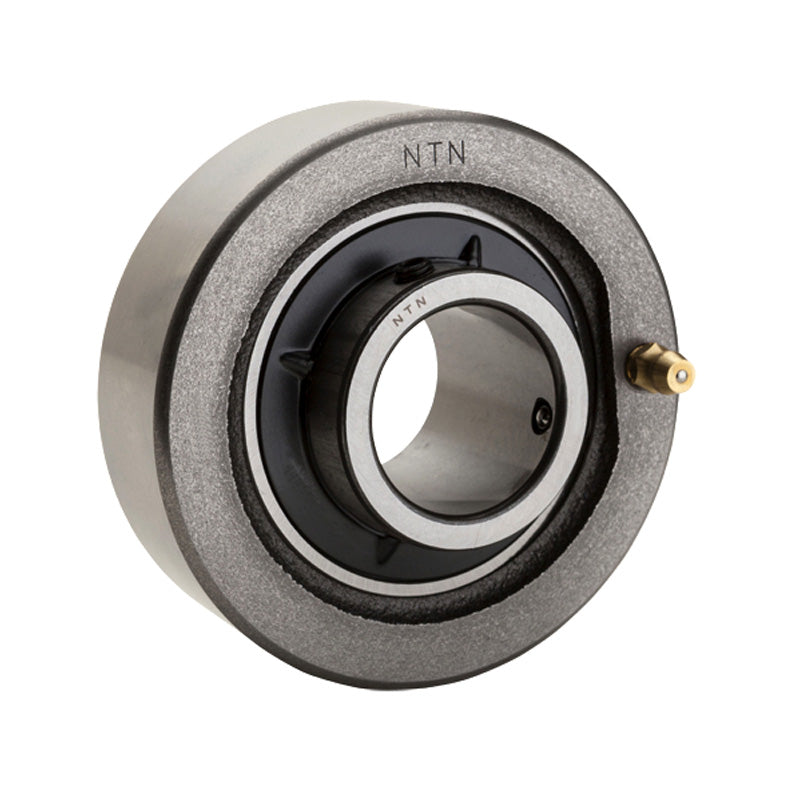

NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
Regular price
$104.04
ex VAT
Regular price
Sale price
$104.04
ex VAT
Allow 2-3 Days
In stock
Price Break
5+
$103.00
10+
$98.84
20+
$96.76
50+
$93.64
100+
$91.56
500+
$86.35
1000+
$72.83
Couldn't load pickup availability
Share this product
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 120mm |
| A | 33mm |
| r | 2.5mm |
| B | 51.6mm |
| S | 19mm |
| Mass | 1.9 kg |
