SKU: M-UCC207D1-NTN

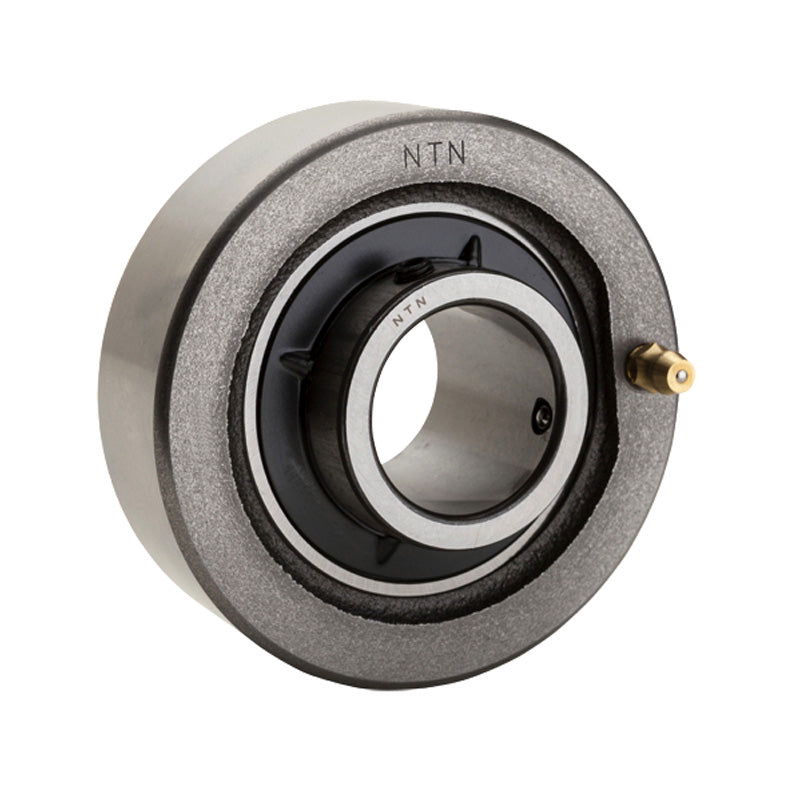

NTN M-UCC207D1 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 90mm Outside Dia - Allow 2-3 Days
NTN M-UCC207D1 Metric Cast Iron Cartridge Unit with 35mm Bore Insert 90mm Outside Dia - Allow 2-3 Days
Regular price
$71.13
ex VAT
Regular price
Sale price
$71.13
ex VAT
In stock
Price Break
10+
$63.31
19+
$59.75
29+
$59.04
39+
$58.33
49+
$57.62
74+
$56.90
99+
$53.35
199+
$52.64
249+
$51.92
499+
$51.21
999+
$49.79
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H | 90mm |
| A | 28mm |
| r | 2mm |
| B | 42.9mm |
| S | 17.5mm |
| Mass | 0.9 kg |
