SKU: M-ASFB204-NTN

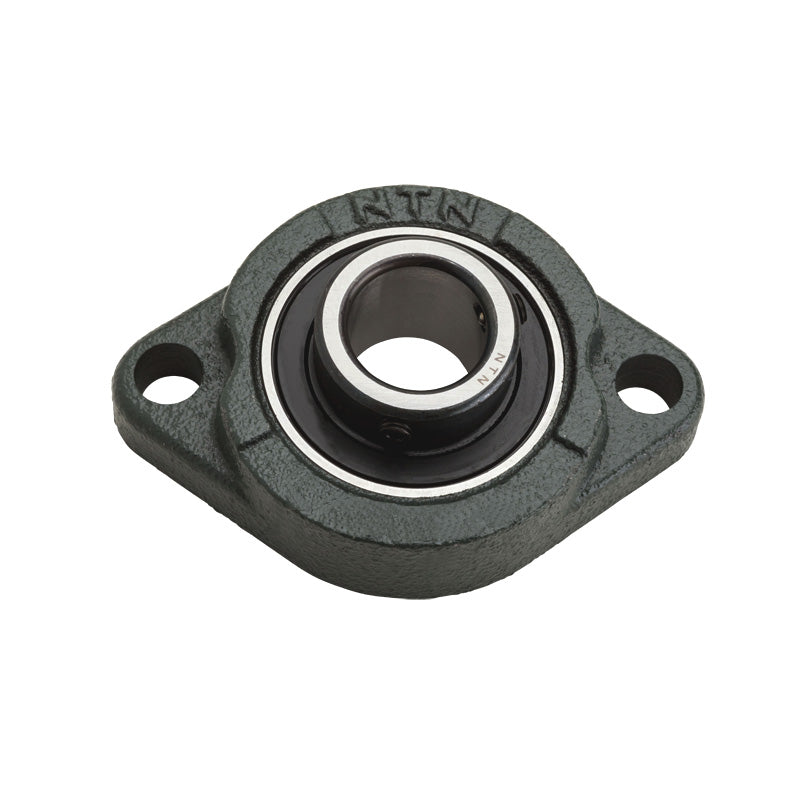

NTN M-ASFB204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
NTN M-ASFB204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
Regular price
$42.62
ex VAT
Regular price
Sale price
$42.62
ex VAT
In stock
Price Break
10+
$37.93
19+
$35.80
29+
$35.37
39+
$34.95
49+
$34.52
74+
$34.10
99+
$31.97
199+
$31.54
249+
$31.11
499+
$30.69
999+
$29.83
Couldn't load pickup availability
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- ASFB
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H | 90mm |
| J | 71.5mm |
| A<sub>2</sub> | 11mm |
| A<sub>1</sub> | 11mm |
| A | 20mm |
| N | 10mm |
| L | 61mm |
| A<sub>0</sub> | 29mm |
| B | 25mm |
| S | 7mm |
| Fixing bolt | M8 |
| Mass | 0.3 kg |
