SKU: LS75100-MB

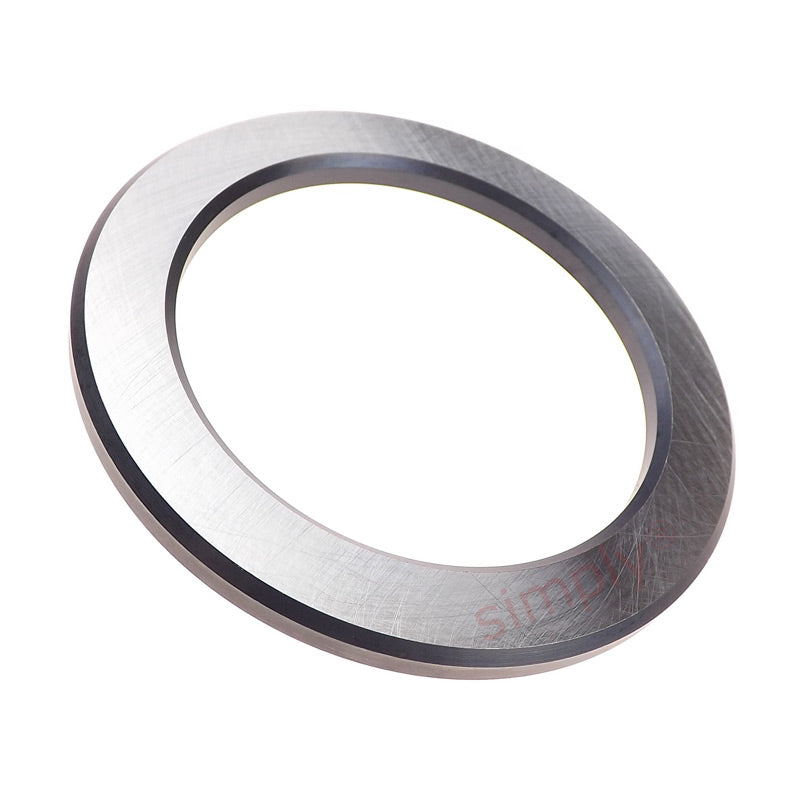

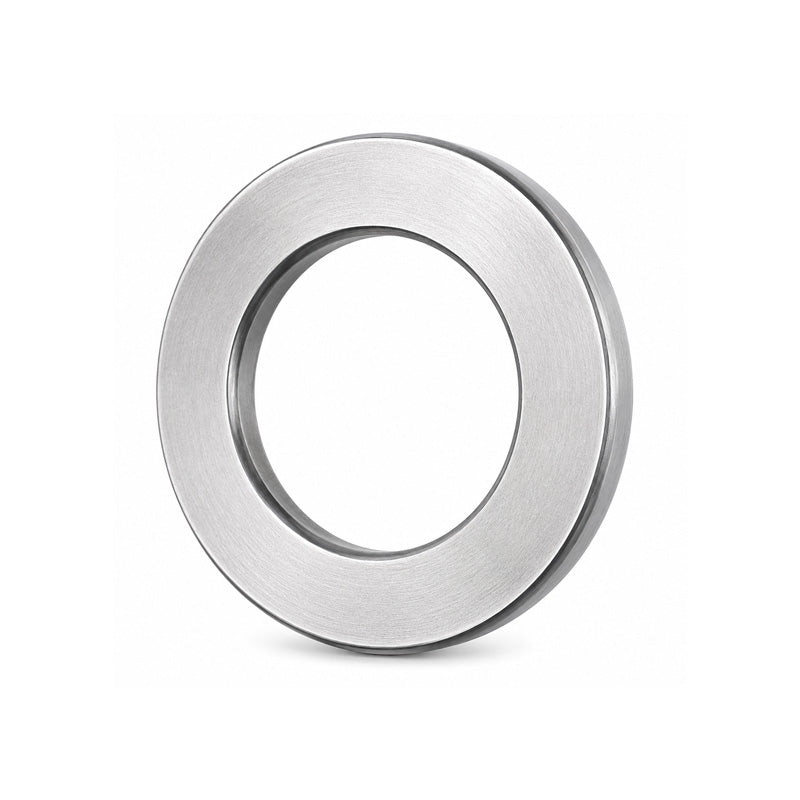

Major Brand LS75100 Raceway Washer Series LS 75x100x5.75mm
Major Brand LS75100 Raceway Washer Series LS 75x100x5.75mm
Regular price
$90.55
ex VAT
Regular price
Sale price
$90.55
ex VAT
In stock
Price Break
10+
$42.77
19+
$40.36
29+
$39.88
39+
$39.40
49+
$38.92
74+
$38.44
99+
$36.04
199+
$35.56
249+
$35.08
499+
$34.60
999+
$33.64
Description
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 100mm
- Width:
- 5.75mm
Technical
Technical
| d | 75mm |
|---|---|
| d1 | 100mm |
| D | 100mm |
| D1 | 77mm |
| B | 5.75mm |
| r1r2 | 1mm |
| Weight | 140 g |
