SKU: LRB.566432

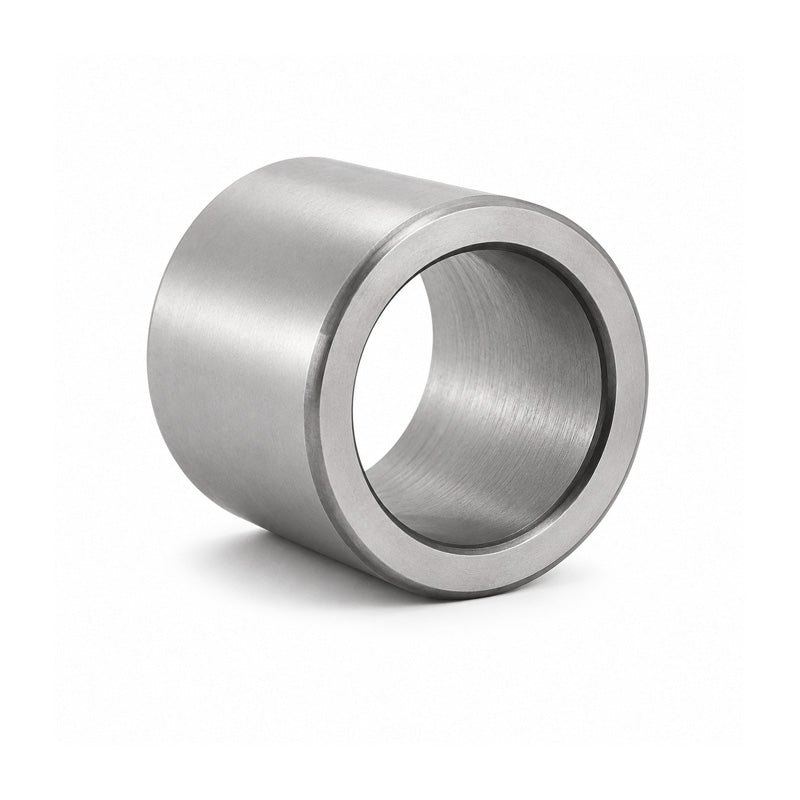

LRB566432 Imperial Needle Roller Inner Race 3-1/2x4x51.05
LRB566432 Imperial Needle Roller Inner Race 3-1/2x4x51.05
Regular price
$146.23
ex VAT
Regular price
Sale price
$146.23
ex VAT
Equivalent to: IR566432 MI56 IR9688C
In stock
Price Break
10+
$130.14
19+
$122.83
29+
$121.37
39+
$119.91
49+
$118.45
74+
$116.98
99+
$109.67
199+
$108.21
249+
$106.75
499+
$105.29
999+
$102.36
Couldn't load pickup availability
Description
Description
|
Imperial Inner Rings:Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. LRB and LRBZ..B types are provided with an oil hole for lubrication. Benefits: Hardened and ground, precision component, lead in for easier assembly. |
Equivalent: IR566432 MI56 IR9688C
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 51.05mm
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| F | 4 inch |
| B | 51.05mm |
| Weight | 0.75kg |
