SKU: LJ.1.NR.EU

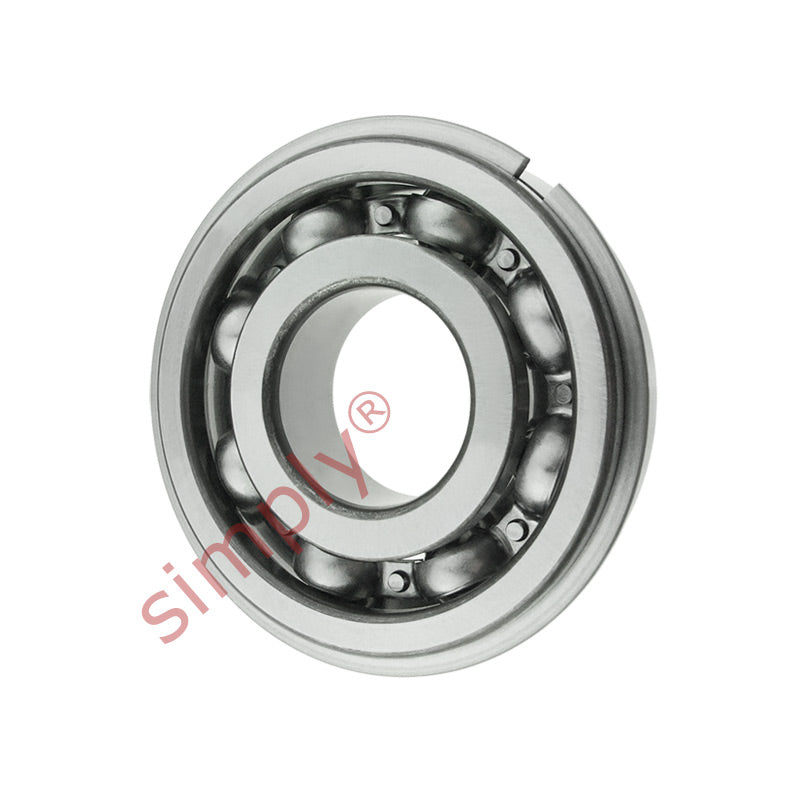

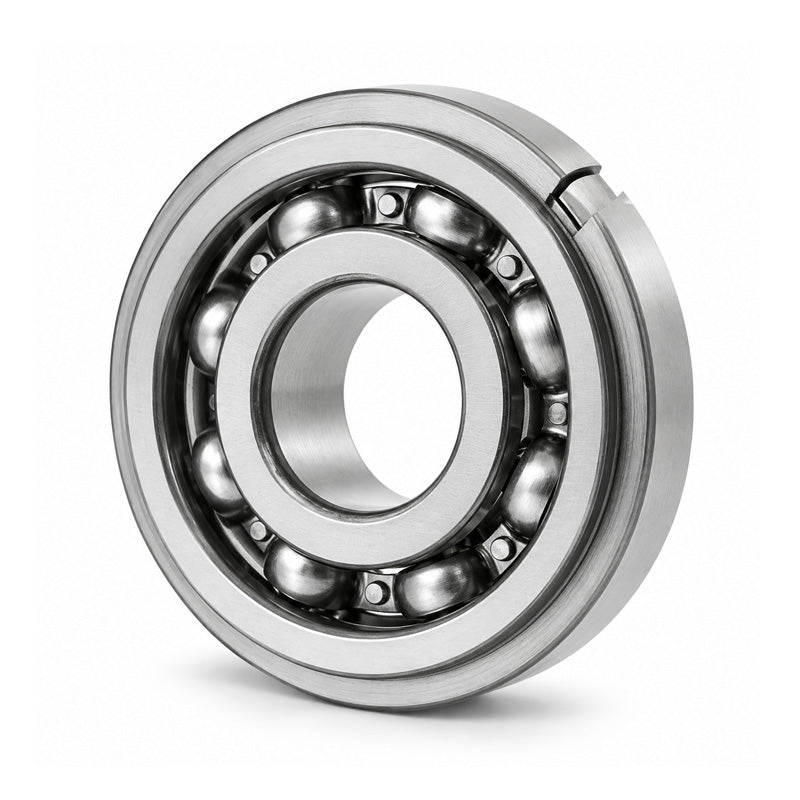

LJ1NR Imperial Open Snap Ring Bearing 1x2-1/4x5/8 inch
LJ1NR Imperial Open Snap Ring Bearing 1x2-1/4x5/8 inch
Regular price
$12.36
ex VAT
Regular price
Sale price
$12.36
ex VAT
Equivalent to: RLS8NR
In stock
Price Break
10+
$5.84
19+
$5.51
29+
$5.44
39+
$5.38
49+
$5.31
74+
$5.25
99+
$4.92
199+
$4.85
249+
$4.79
499+
$4.72
999+
$4.59
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: RLS8NR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore (d) | 1 inch |
|---|---|
| Outside Diameter (D) | 2.25 inch |
| Width (B) | 0.625 inch |
| Dynamic Load Rating | 18600 N |
| Static Load Rating | 9700 N |
| Limiting Speed (Grease) | 12700 rpm |
| Limiting Speed (Oil) | 17000 rpm |
| Weight | 0.169 kg |
