SKU: LJ.1-1/8.NR.EU

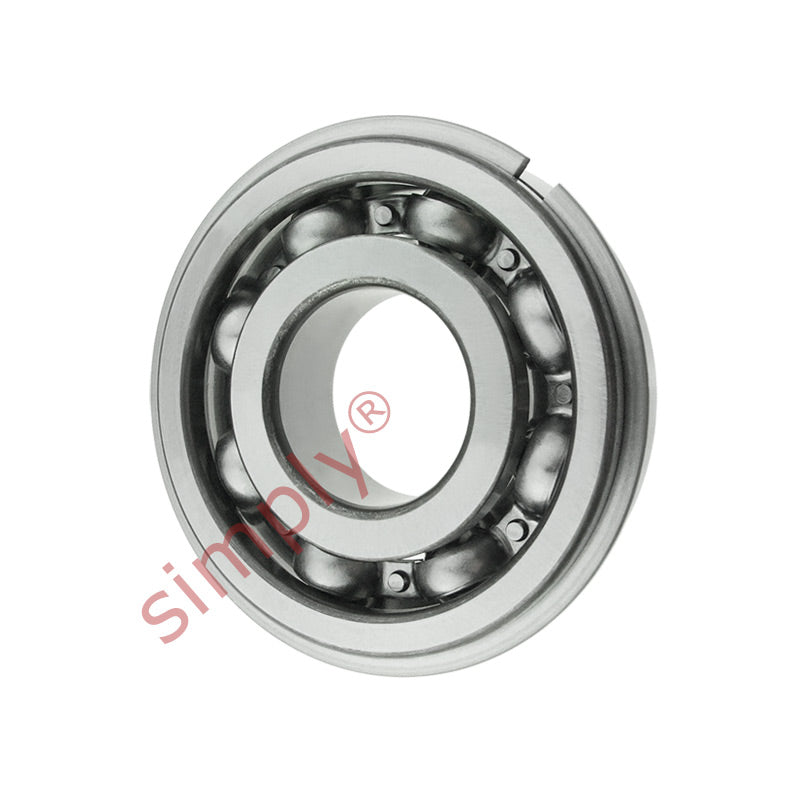

LJ1-1/8NR Imperial Open Snap Ring Bearing 1-1/8x2-1/2x5/8 inch
LJ1-1/8NR Imperial Open Snap Ring Bearing 1-1/8x2-1/2x5/8 inch
Regular price
$20.77
ex VAT
Regular price
Sale price
$20.77
ex VAT
Equivalent to: RLS9
In stock
Price Break
10+
$9.81
19+
$9.26
29+
$9.15
39+
$9.04
49+
$8.93
74+
$8.82
99+
$8.27
199+
$8.15
249+
$8.04
499+
$7.93
999+
$7.71
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: RLS9
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore | 1.125 inch |
|---|---|
| Outside Diameter | 2.5 inch |
| Width | 0.625 inch |
| Weight | 0.5 kg |
