SKU: LFTC3/4-RHP

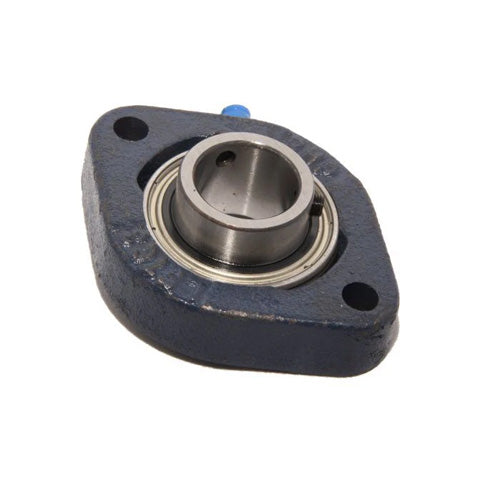

RHP LFTC3/4 Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
RHP LFTC3/4 Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
Regular price
$64.17
ex VAT
Regular price
Sale price
$64.17
ex VAT
In stock
Price Break
10+
$57.11
19+
$53.90
29+
$53.26
39+
$52.62
49+
$51.98
74+
$51.34
99+
$48.13
199+
$47.49
249+
$46.84
499+
$46.20
999+
$44.92
Couldn't load pickup availability
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 71.501mm = 2.815 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 2.618 inch |
| H | 3.563 inch |
| J | 2.815 inch |
| G | 0.3125 inch |
| A | 0.669 inch |
| A1 | 1.093 inch |
| B | 1.219 inch |
| s | 0.502 inch |
| d1 | 1.222 inch |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
