SKU: LFTC1.1/4A-RHP

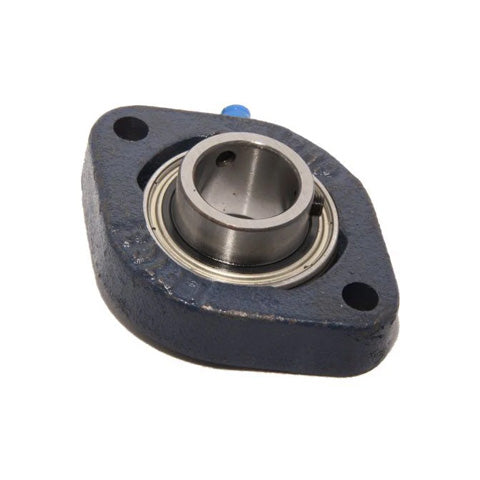

RHP LFTC1-1/4A Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
RHP LFTC1-1/4A Two Bolt Oval Cast Iron Flange Housing Bearing 1-1/4 inch Bore
Regular price
$107.28
ex VAT
Regular price
Sale price
$107.28
ex VAT
In stock
Price Break
10+
$95.48
19+
$90.12
29+
$89.04
39+
$87.97
49+
$86.90
74+
$85.82
99+
$80.46
199+
$79.39
249+
$78.31
499+
$77.24
999+
$75.10
Couldn't load pickup availability
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 90.49mm = 3.563 (3-9/16) inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.307 inch |
| H | 4.409 inch |
| J | 3.563 inch |
| G | 0.375 inch |
| A | 0.807 inch |
| A1 | 1.324 inch |
| B1 | 1.229 inch |
| s1 | 0.356 inch |
| d1 | 1.575 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-1-1/4AG+insonly">1230-1-1/4AG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
