SKU: LAZY/12

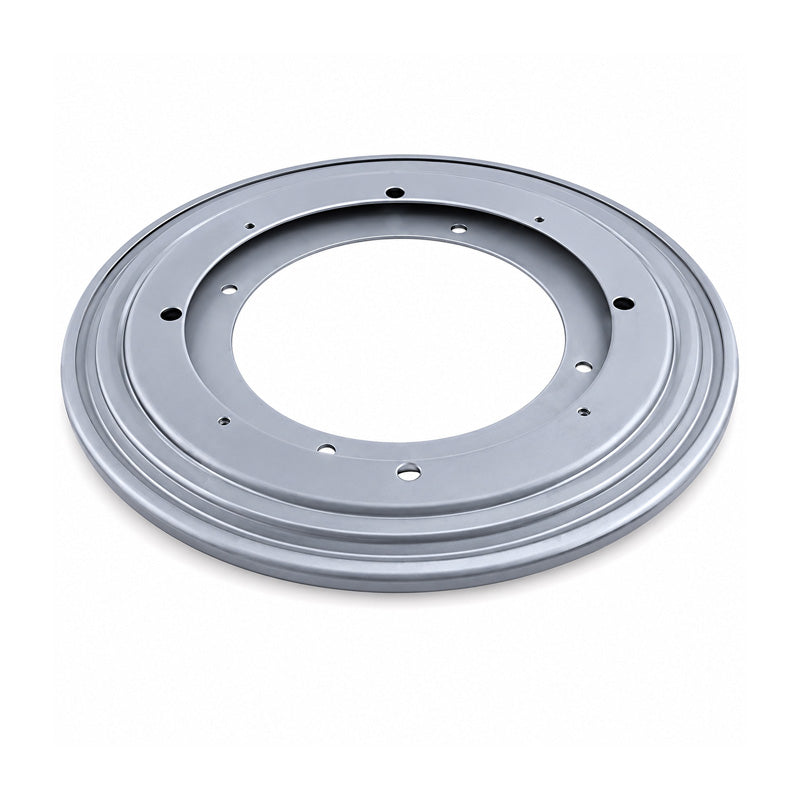

12 inch Round Lazy Susan Turntable Bearing
12 inch Round Lazy Susan Turntable Bearing
Regular price
$16.30
ex VAT
Regular price
Sale price
$16.30
ex VAT
In stock
Price Break
10+
$7.70
19+
$7.27
29+
$7.18
39+
$7.09
49+
$7.01
74+
$6.92
99+
$6.49
199+
$6.40
249+
$6.31
499+
$6.23
999+
$6.06
Share this product
Description
Description
Lazy Susan Turntable Bearings: Galvanised pressed steel construction with fixing holes in both upper and lower plates, spins freely on a single row of captive ball bearings. Maximum load 1000lbs
Benefits: High quality & low cost, resistant to corrosion, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
- Brand / Quality:
- Triangle Mfg - High Quality
- Inside Diameter:
- 160.8mm = 6.33 inch
- Outside Diameter:
- 304.8mm = 12 inch
- Thickness:
- 8.33mm = 0.328 (21/64 ) inch

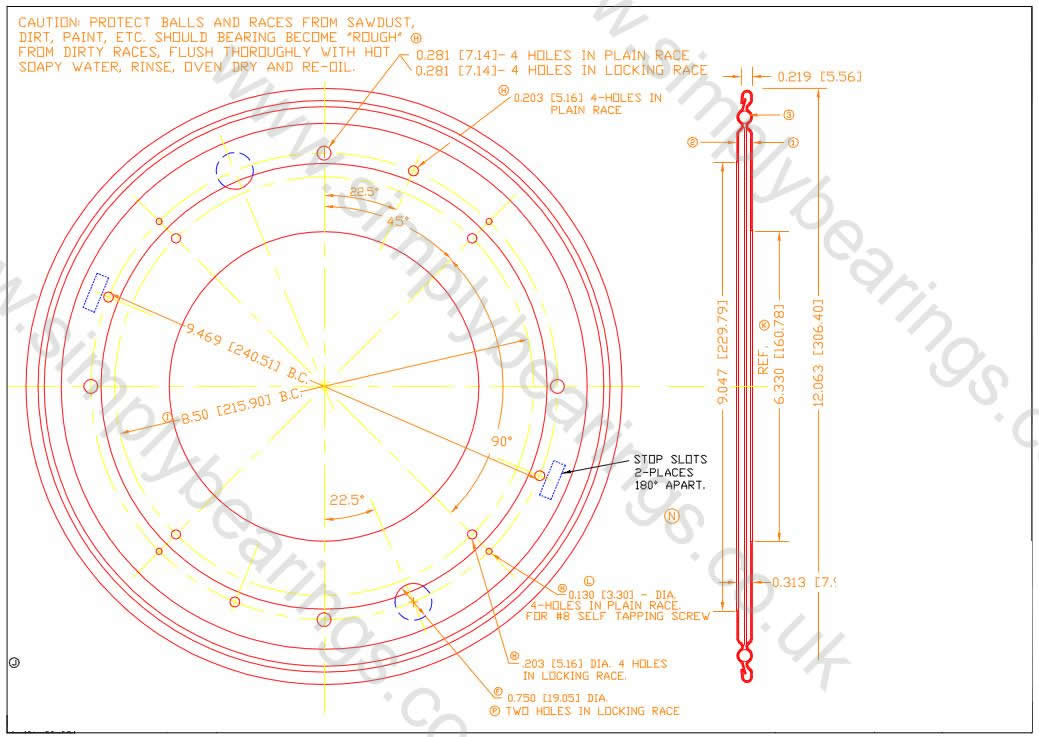

Technical
Technical
| Nominal Inside Diameter | 6.33 inch = 160.8mm |
|---|---|
| Nominal Outside Diameter | 12 inch = 304.8mm |
| W | 21/64 inch = 8.33mm |
| Pitch Circle Diameter | 9.47 inch = 240.5mm |
| Max Load Weight | 1000 lbs |
| Weight | 0.7551kg |
