SKU: KR62PPA-EU

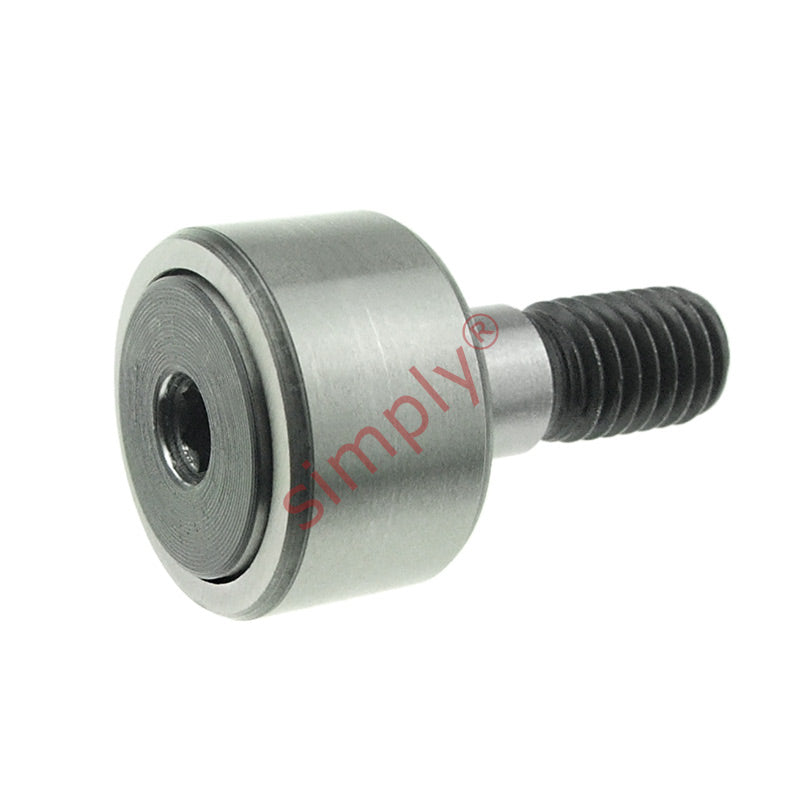

Budget KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
Budget KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
Regular price
$37.11
ex VAT
Regular price
Sale price
$37.11
ex VAT
In stock
Price Break
10+
$33.03
19+
$31.17
29+
$30.80
39+
$30.43
49+
$30.06
74+
$29.69
99+
$27.83
199+
$27.46
249+
$27.09
499+
$26.72
999+
$25.98
Couldn't load pickup availability
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 62mm
- Width:
- 29mm
- Pitch:
- M24x1.5
Technical
Technical
| D | 62mm |
|---|---|
| C | 29mm |
| d (Stud Diameter) | 24mm |
| B | 80mm |
| B1 | 49.5mm |
| B2 | 11mm |
| C1 | 0.8mm |
| d1 | 44mm |
| G | M24x1.5 |
| G1 | 25mm |
| M1 | 4mm |
| r min | 1mm |
| SW | 14mm |
| Dynamic load | 24600 N |
| Static load | 44000 N |
| Fatigue load limit Pu | 5500 N |
| Radial dynamic load | 58500 N |
| Radial static load | 85000 N |
| Speed rating | 1900 rpm |
| Weight | 770 g |
