SKU: KR19PPSK-MB

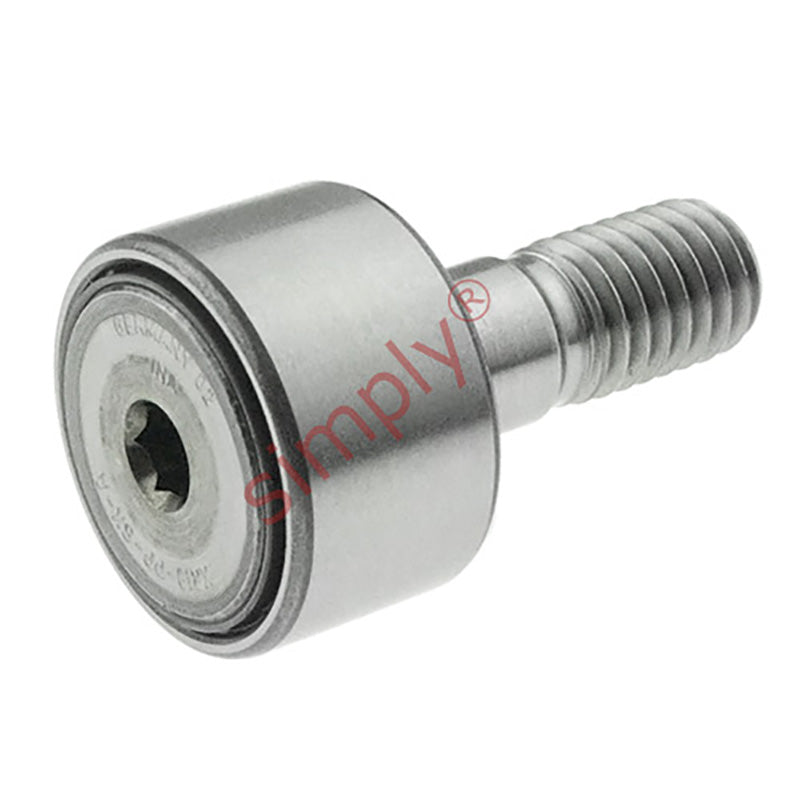

Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Major Brand KR19PPSK Contact Sealed Crowned Stud Type Cam Follower 19x11x8 M8 Thread
Regular price
$64.92
ex VAT
Regular price
Sale price
$64.92
ex VAT
Equivalent to: KR19SKPPA KR19SKPP
In stock
Price Break
10+
$57.78
19+
$54.53
29+
$53.88
39+
$53.23
49+
$52.59
74+
$51.94
99+
$48.69
199+
$48.04
249+
$47.39
499+
$46.74
999+
$45.44
Couldn't load pickup availability
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
Equivalent: KR19SKPPA KR19SKPP
- Brand / Quality:
- Major Brand - High Quality
- Thread Pitch:
- M8
- Outside Diameter:
- 19mm
- Width:
- 11mm
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8mm |
| G1 | 10mm |
| r min | 0.15mm |
| SW | 4mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
