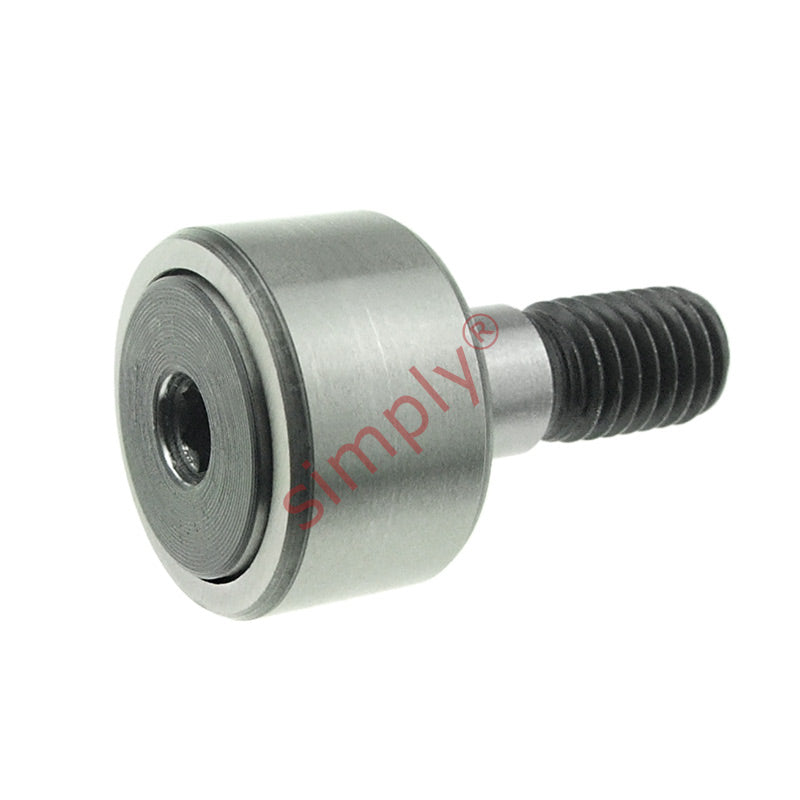

Major Brand KR19 Crowned Cam Follower 19x11x8 M8 Thread
Major Brand KR19 Crowned Cam Follower 19x11x8 M8 Thread
Regular price
$60.07
ex VAT
Regular price
Sale price
$60.07
ex VAT
In stock
Price Break
10+
$53.46
19+
$50.46
29+
$49.86
39+
$49.26
49+
$48.66
74+
$48.06
99+
$45.05
199+
$44.45
249+
$43.85
499+
$43.25
999+
$42.05
Couldn't load pickup availability
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Pitch:
- M8
- Outside Diameter:
- 19mm
- Width:
- 11mm
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8mm |
| G1 | 10mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
