SKU: KP001

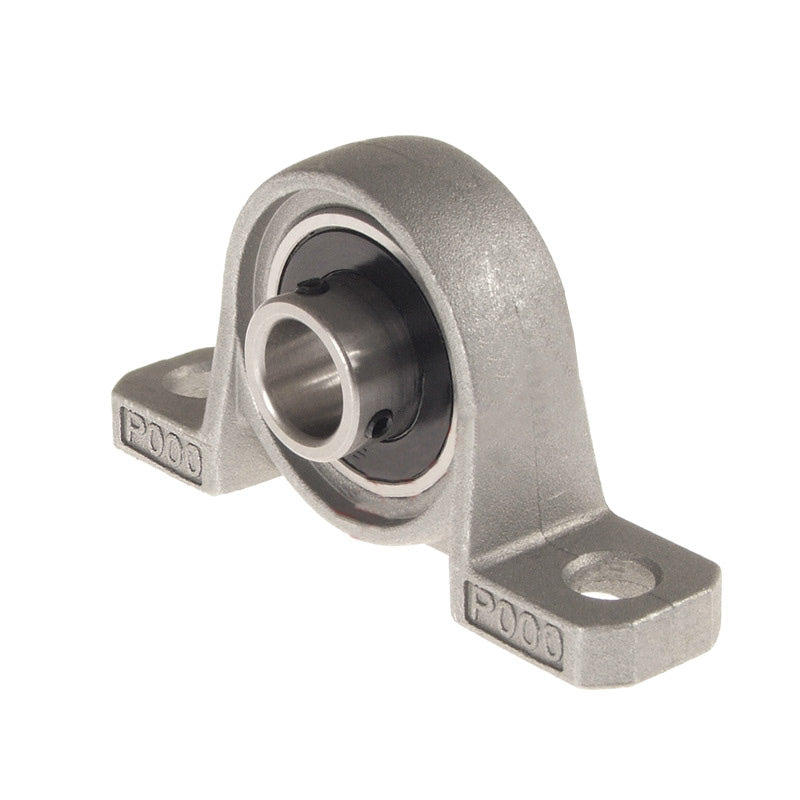

KP001 2 Bolt Aluminium Pillow Block with 12mm Bore Grub Screw Insert
KP001 2 Bolt Aluminium Pillow Block with 12mm Bore Grub Screw Insert
Regular price
$14.85
ex VAT
Regular price
Sale price
$14.85
ex VAT
In stock
Price Break
3+
$7.01
4+
$6.62
9+
$6.54
19+
$6.46
49+
$6.38
99+
$6.30
499+
$5.91
999+
$5.83
1999+
$5.75
2999+
$5.67
4999+
$5.52
Description
Description
|
KP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- KP
- Bolt Hole Centres:
- 56mm
Technical
Technical
| Shaft Diameter | 12mm |
|---|---|
| H | 19mm |
| L | 71mm |
| J | 56mm |
| A | 16mm |
| N | 7mm |
| H1 | 6mm |
| H2 | 38mm |
| B | 14.5mm |
| s | 4mm |
| Recommended Mounting Bolt | M6 |
| Weight | 0.073 kg |
| Dynamic load | 5096 N ~ 519.647 kgf |
| Static load | 2401 N ~ 244.834 kgf |
