SKU: KP000

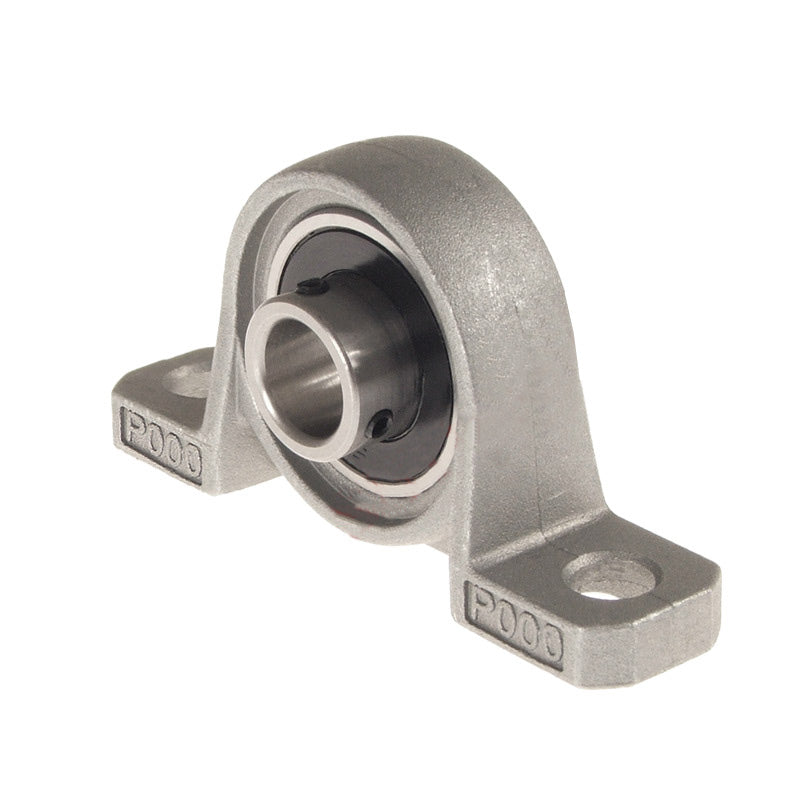

KP000 2 Bolt Aluminium Pillow Block with 10mm Bore Grub Screw Insert
KP000 2 Bolt Aluminium Pillow Block with 10mm Bore Grub Screw Insert
Regular price
$13.29
ex VAT
Regular price
Sale price
$13.29
ex VAT
In stock
Price Break
3+
$6.27
4+
$5.92
9+
$5.85
19+
$5.78
49+
$5.71
99+
$5.64
499+
$5.29
999+
$5.22
1999+
$5.15
2999+
$5.08
4999+
$4.94
Description
Description
|
KP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Style:
- KP
- Bolt Hole Centres:
- 53mm
Technical
Technical
| Shaft Diameter | 10mm |
|---|---|
| H | 18mm |
| L | 67mm |
| J | 53mm |
| A | 16mm |
| N | 7mm |
| H1 | 6mm |
| H2 | 35mm |
| B | 14mm |
| s | 4mm |
| Recommended Mounting Bolt | M6 |
| Weight | 0.08 kg |
| Dynamic load | 4606 N ~ 469.681 kgf |
| Static load | 1906 N ~ 194.358 kgf |
