SKU: KMTA32-SKF

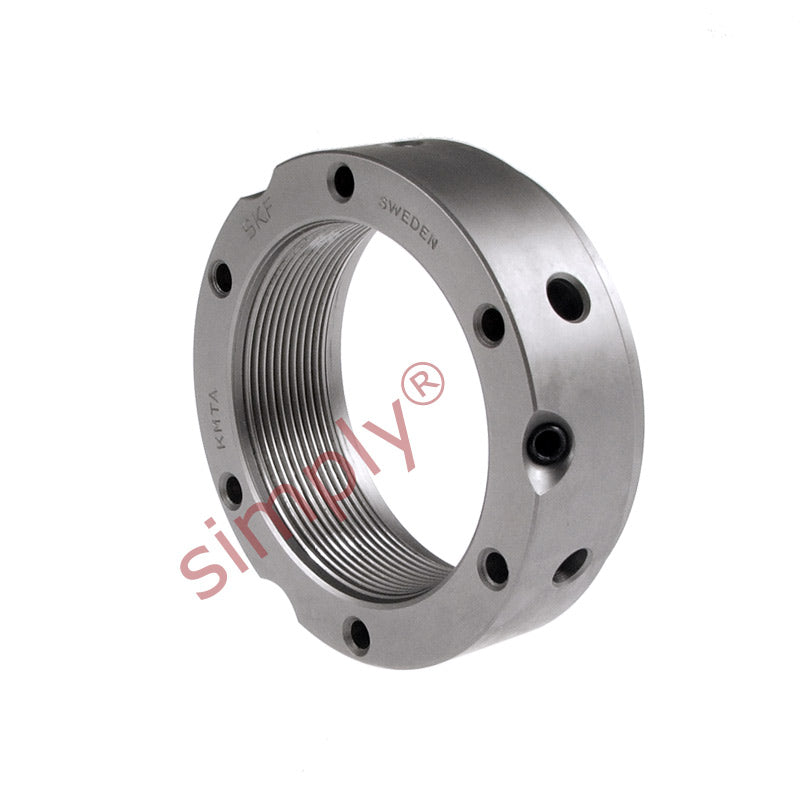

SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm
SKF KMTA32 Precision Locking Nut with Locking Pins M160x3mm
Regular price
$1,003.40
ex VAT
Regular price
Sale price
$1,003.40
ex VAT
In stock
Price Break
10+
$893.03
19+
$842.86
29+
$832.82
39+
$822.79
49+
$812.75
74+
$802.72
99+
$752.55
199+
$742.52
249+
$732.48
499+
$722.45
999+
$702.38
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M160x3
Technical
Technical
| G | M160x3 |
|---|---|
| d2 | 205mm |
| d3 | 190mm |
| d4 | 162mm |
| B | 32mm |
| J1 | 185mm |
| J2 | 17mm |
| N1 | 8.4mm |
| N2 | 10mm |
| Axial load capacity | 1100 kN |
| Loosening torque | 1600 Nm |
| Weight | 3.15 kg |
| Spanner | B205-220 |
| Grub Screw | M10 |
| Screw torque | 35 Nm |
| Name | KMTA32 |
