SKU: KMTA16-SKF

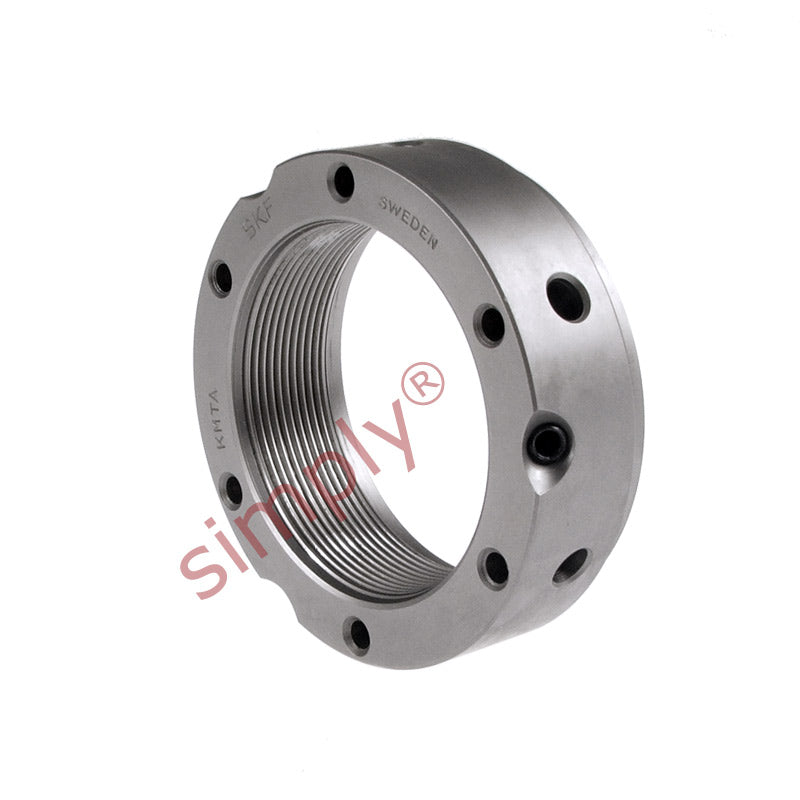

SKF KMTA16 Precision Locking Nut with Locking Pins M80x2mm
SKF KMTA16 Precision Locking Nut with Locking Pins M80x2mm
Regular price
$326.10
ex VAT
Regular price
Sale price
$326.10
ex VAT
In stock
Price Break
10+
$290.23
19+
$273.92
29+
$270.66
39+
$267.40
49+
$264.14
74+
$260.88
99+
$244.58
199+
$241.31
249+
$238.05
499+
$234.79
999+
$228.27
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M80x2
Technical
Technical
| G | M80x2 |
|---|---|
| d2 | 110mm |
| d3 | 97mm |
| d4 | 83mm |
| B | 30mm |
| J1 | 95mm |
| J2 | 16mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 620 kN |
| Loosening torque | 325 Nm |
| Weight | 1 kg |
| Spanner | B110-115 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA16 |
