SKU: KMK7-SKF

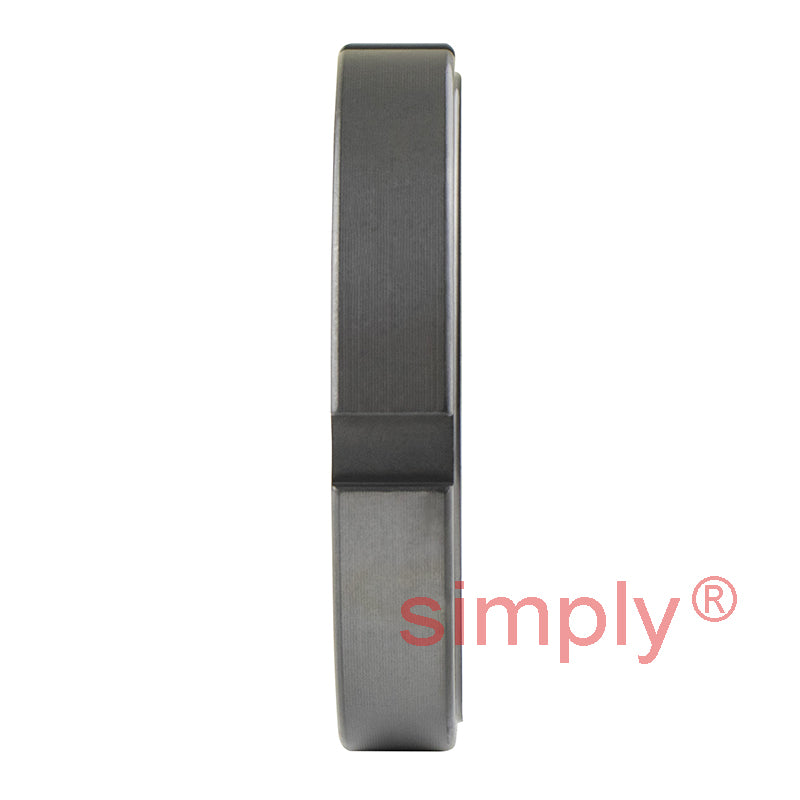

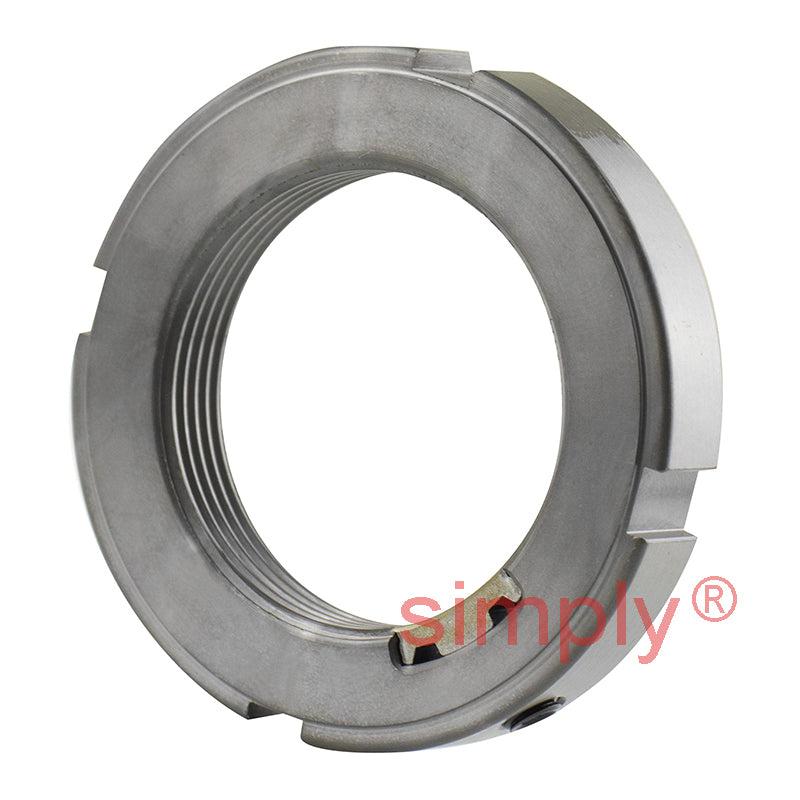

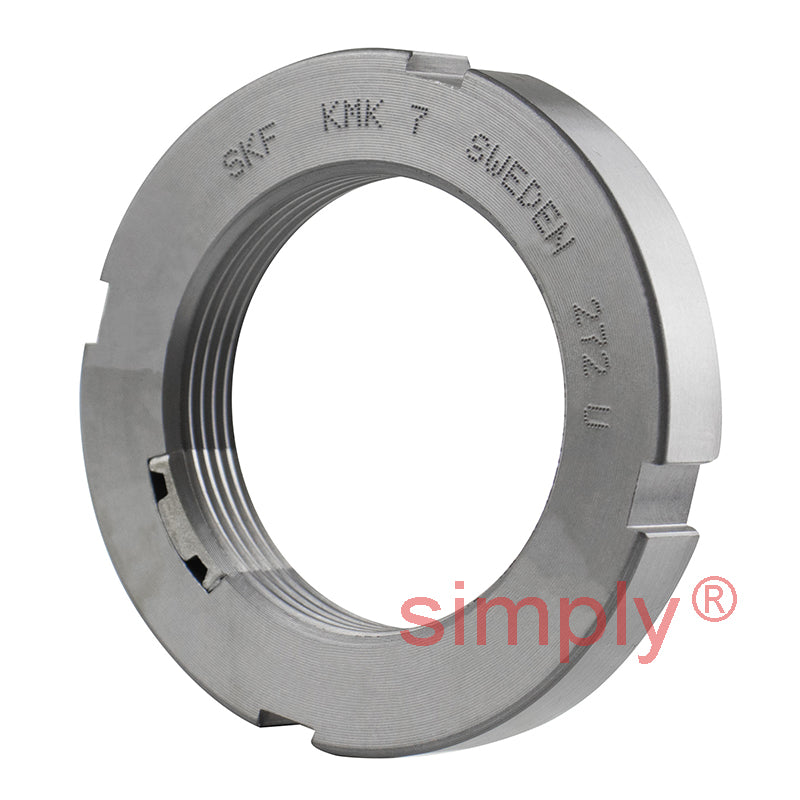

SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
Regular price
$81.58
ex VAT
Regular price
Sale price
$81.58
ex VAT
In stock
Price Break
10+
$72.61
19+
$68.53
29+
$67.71
39+
$66.90
49+
$66.08
74+
$65.26
99+
$61.19
199+
$60.37
249+
$59.55
499+
$58.74
999+
$57.11
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| d1 | 48mm |
|---|---|
| d3 | 52mm |
| B | 9mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 50 kN |
| Loosening torque | 40 Nm |
| Weight | 0.07 kg |
| G | M35x1.5 |
| Designation | KMK7 |
| Locking device | HN7 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
