SKU: KMK2-SKF
SKF KMK2 Lock Nut with Integral Locking Device M15x1mm
SKF KMK2 Lock Nut with Integral Locking Device M15x1mm
Regular price
$57.94
ex VAT
Regular price
Sale price
$57.94
ex VAT
In stock
Price Break
10+
$51.57
19+
$48.67
29+
$48.09
39+
$47.51
49+
$46.93
74+
$46.35
99+
$43.46
199+
$42.88
249+
$42.30
499+
$41.72
999+
$40.56
Couldn't load pickup availability
Description
Description
|

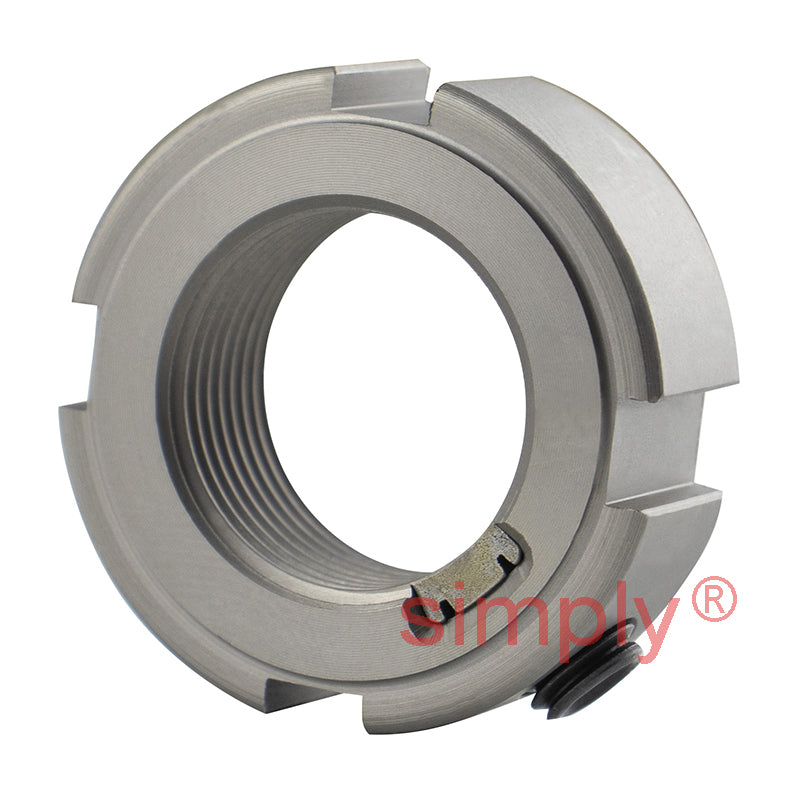

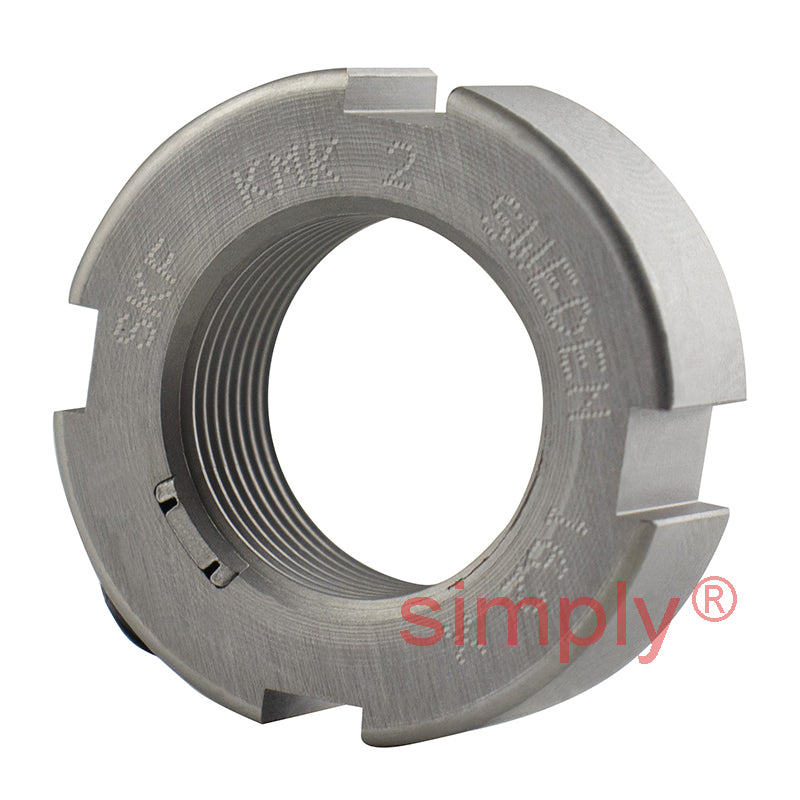

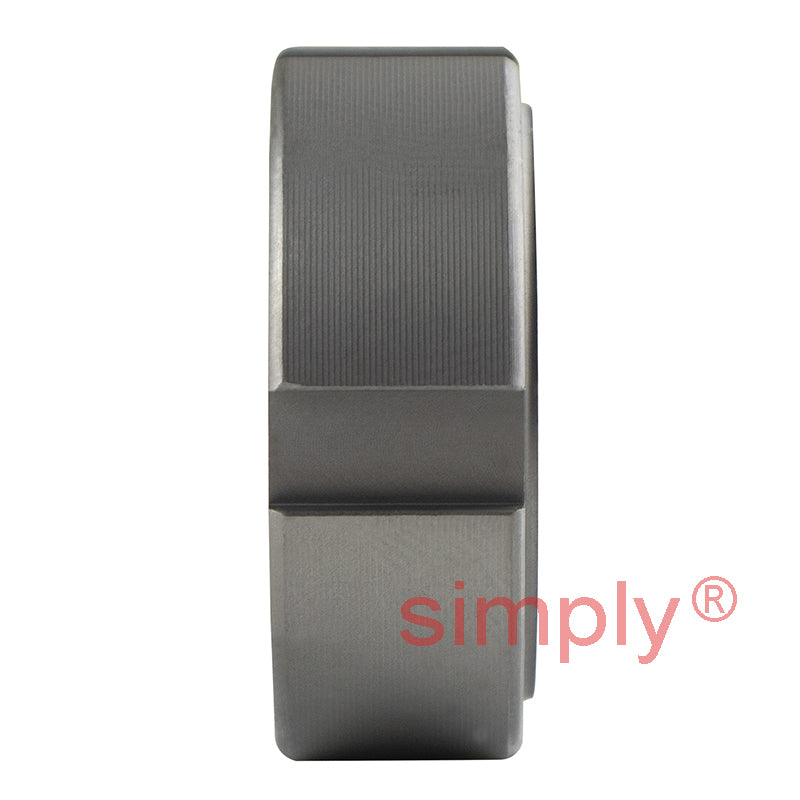

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M15x1
Technical
Technical
| d1 | 21mm |
|---|---|
| d3 | 25mm |
| B | 9mm |
| b | 4mm |
| h | 2mm |
| Axial load capacity | 14.6 kN |
| Loosening torque | 12 Nm |
| Weight | 0.021 kg |
| G | M15x1 |
| Designation | KMK2 |
| Locking device | HN2 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
