SKU: KMK16-SKF

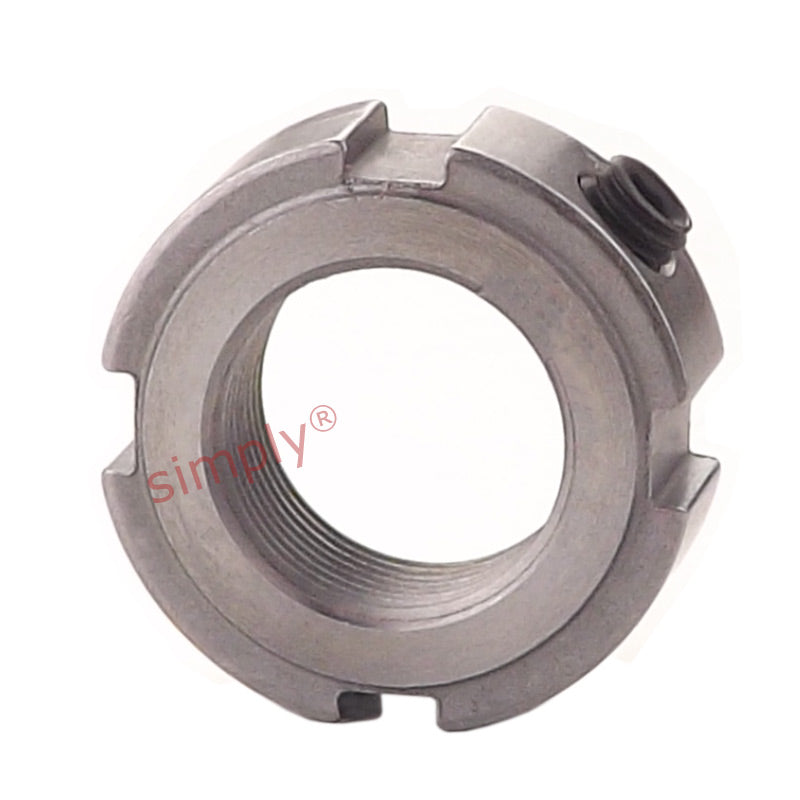

SKF KMK16 Lock Nut with Integral Locking Device M80x2mm
SKF KMK16 Lock Nut with Integral Locking Device M80x2mm
Regular price
$223.68
ex VAT
Regular price
Sale price
$223.68
ex VAT
In stock
Price Break
10+
$199.08
19+
$187.89
29+
$185.65
39+
$183.42
49+
$181.18
74+
$178.94
99+
$167.76
199+
$165.52
249+
$163.29
499+
$161.05
999+
$156.58
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M80x2
Technical
Technical
| d1 | 98mm |
|---|---|
| d3 | 105mm |
| B | 18mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 173 kN |
| Loosening torque | 378 Nm |
| Weight | 0.45 kg |
| G | M80x2 |
| Designation | KMK16 |
| Locking device | HN16 |
| Grub screw | M8 |
| Grub screw torque | 18 Nm |
