SKU: KMK1-SKF

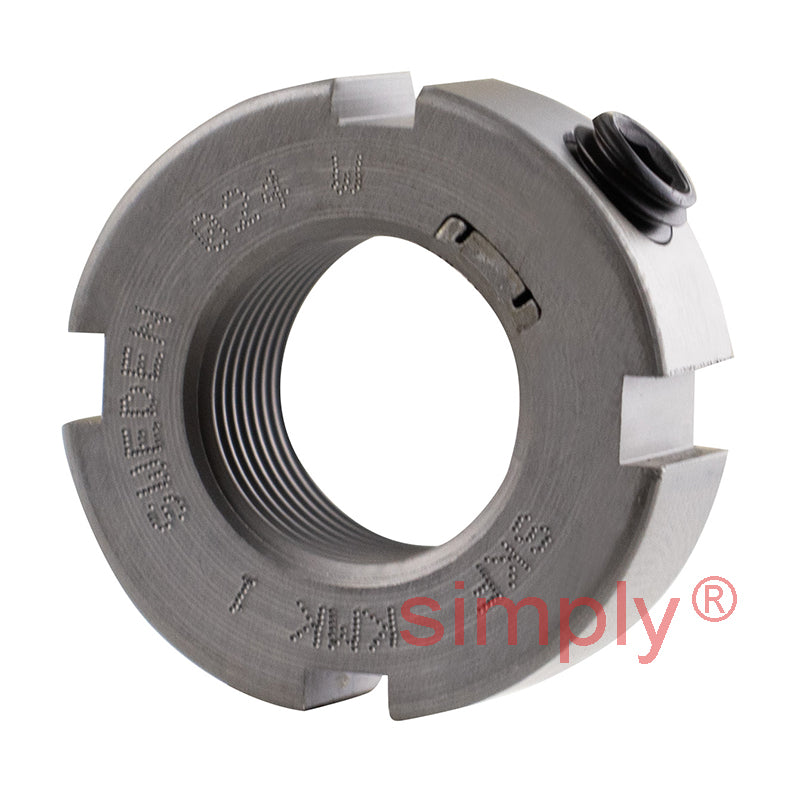

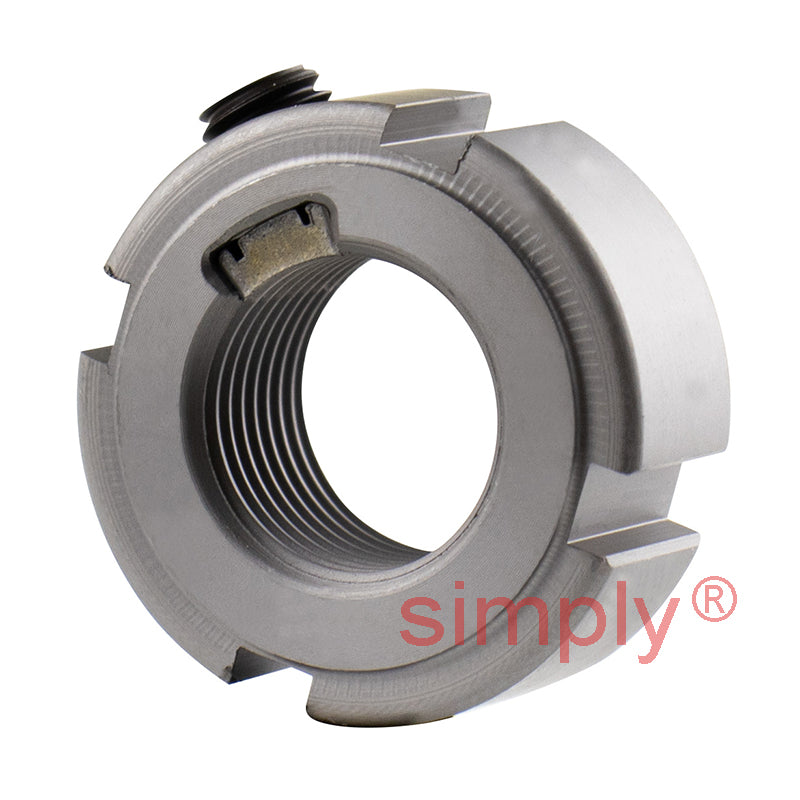

SKF KMK1 Lock Nut with Integral Locking Device M12x1mm
SKF KMK1 Lock Nut with Integral Locking Device M12x1mm
Regular price
$98.63
ex VAT
Regular price
Sale price
$98.63
ex VAT
In stock
Price Break
10+
$87.78
19+
$82.85
29+
$81.86
39+
$80.88
49+
$79.89
74+
$78.90
99+
$73.97
199+
$72.99
249+
$72.00
499+
$71.01
999+
$69.04
Couldn't load pickup availability
Description
Description
|

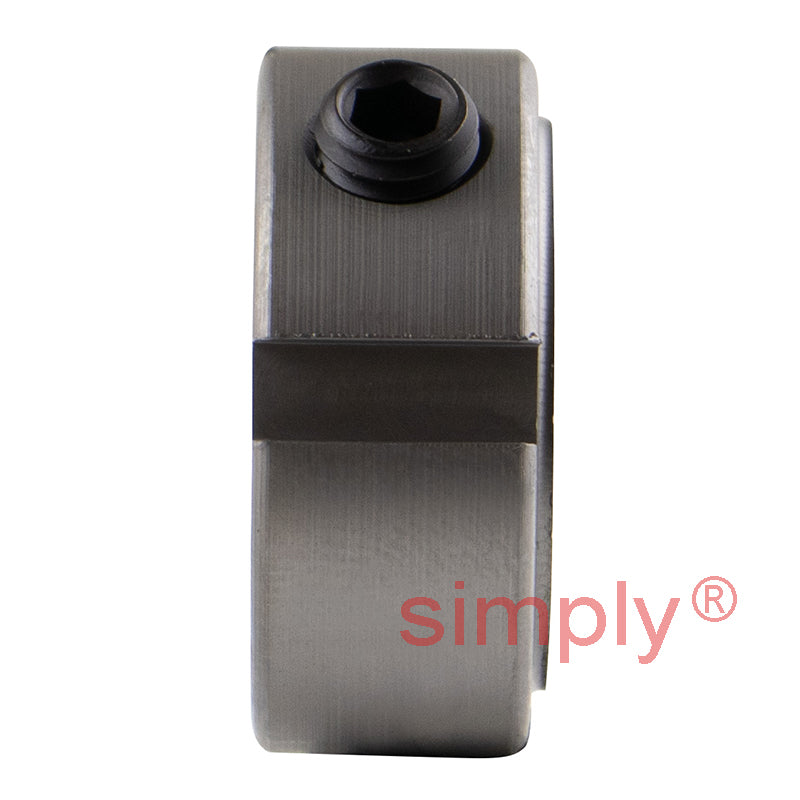

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12x1
Technical
Technical
| d1 | 18mm |
|---|---|
| d3 | 22mm |
| B | 9mm |
| b | 3mm |
| h | 2mm |
| Axial load capacity | 11.8 kN |
| Loosening torque | 9 Nm |
| Weight | 0.018 kg |
| G | M12x1 |
| Designation | KMK1 |
| Locking device | HN1 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
