SKU: KMK0-SKF

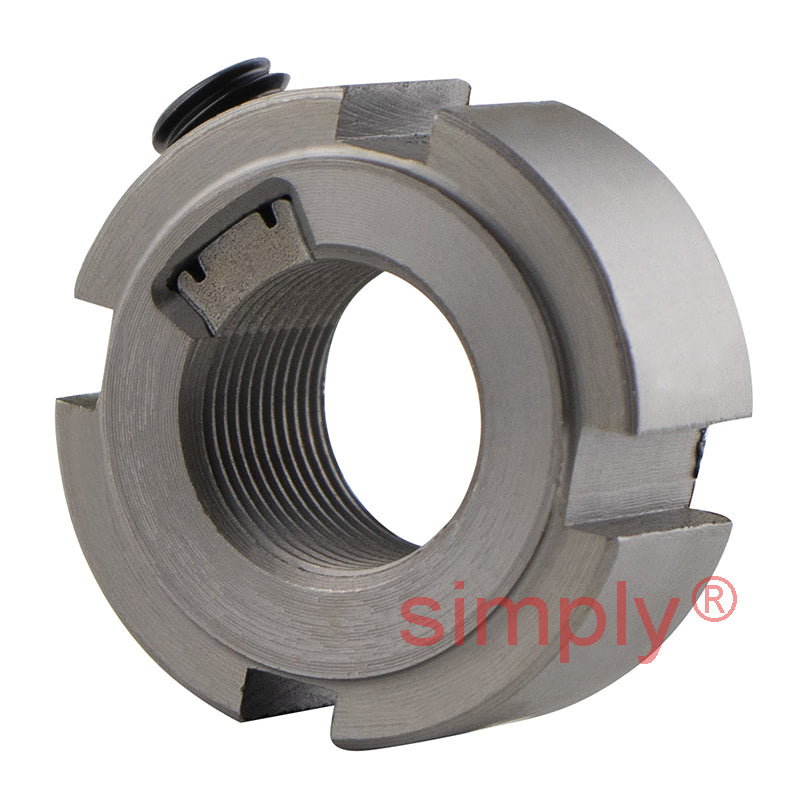

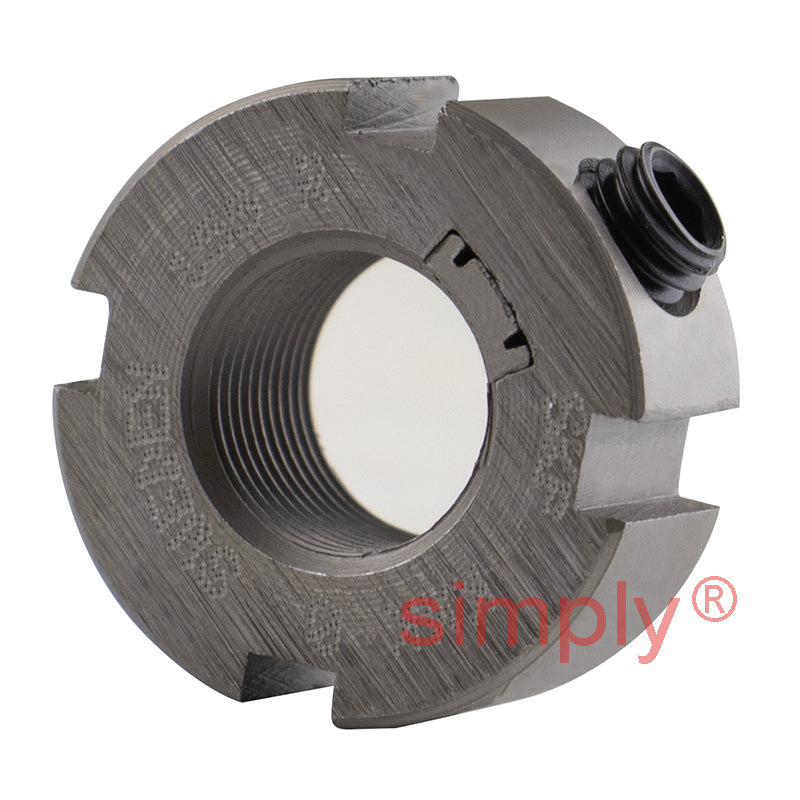

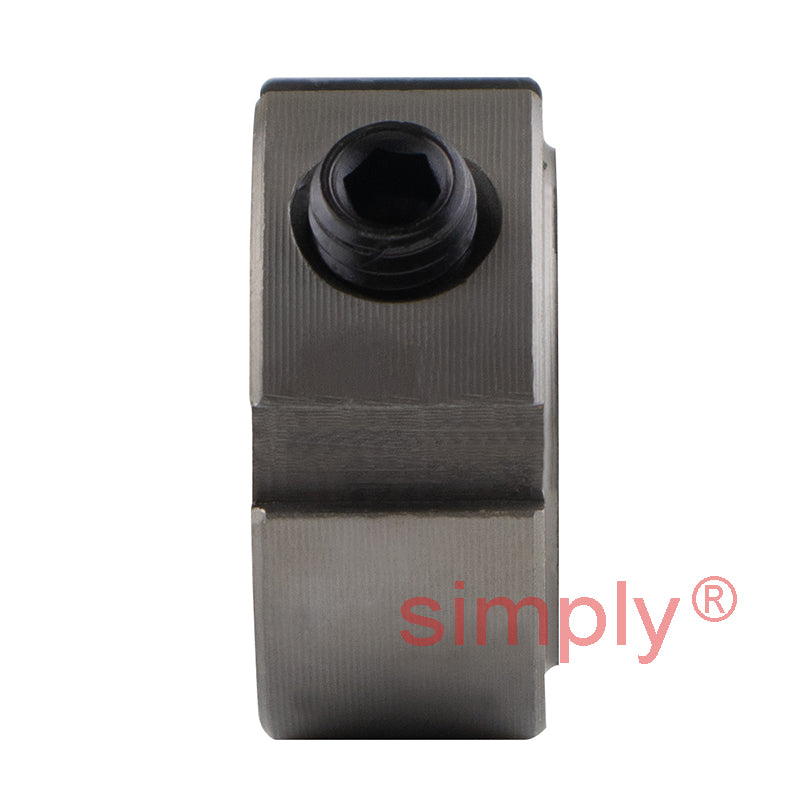

SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
SKF KMK0 Lock Nut with Integral Locking Device M10x0.75mm
Regular price
$100.33
ex VAT
Regular price
Sale price
$100.33
ex VAT
In stock
Price Break
10+
$89.29
19+
$84.28
29+
$83.27
39+
$82.27
49+
$81.27
74+
$80.26
99+
$75.25
199+
$74.24
249+
$73.24
499+
$72.24
999+
$70.23
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10x0.75
Technical
Technical
| d1 | 16mm |
|---|---|
| d3 | 20mm |
| B | 9mm |
| b | 3mm |
| h | 2mm |
| Axial load capacity | 9.8 kN |
| Loosening torque | 6 Nm |
| Weight | 0.016 kg |
| G | M10x0.75 |
| Designation | KMK0 |
| Locking device | HN0 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
