SKU: KMFE20-SKF

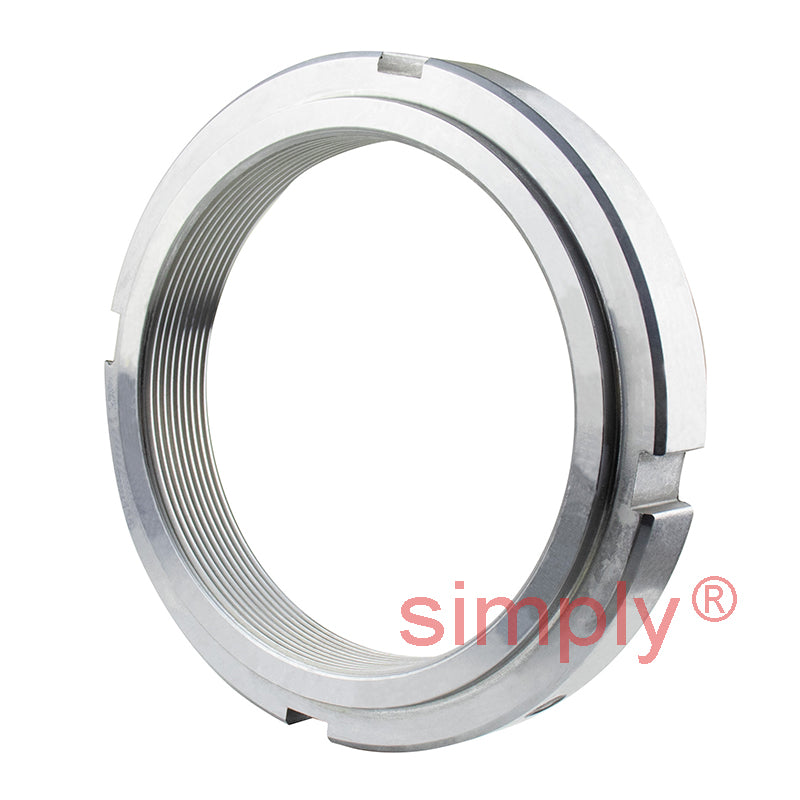

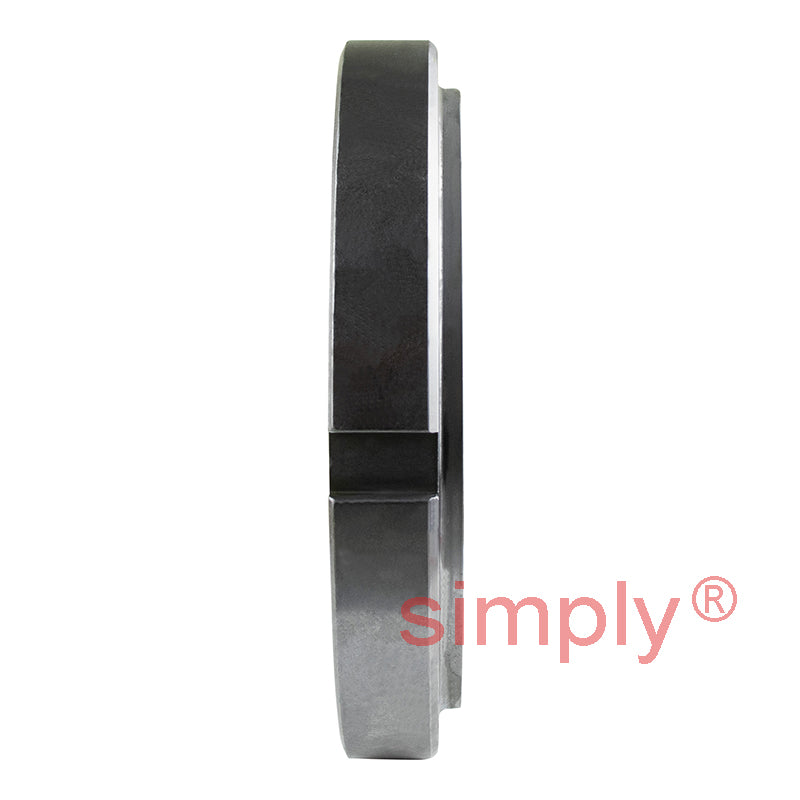

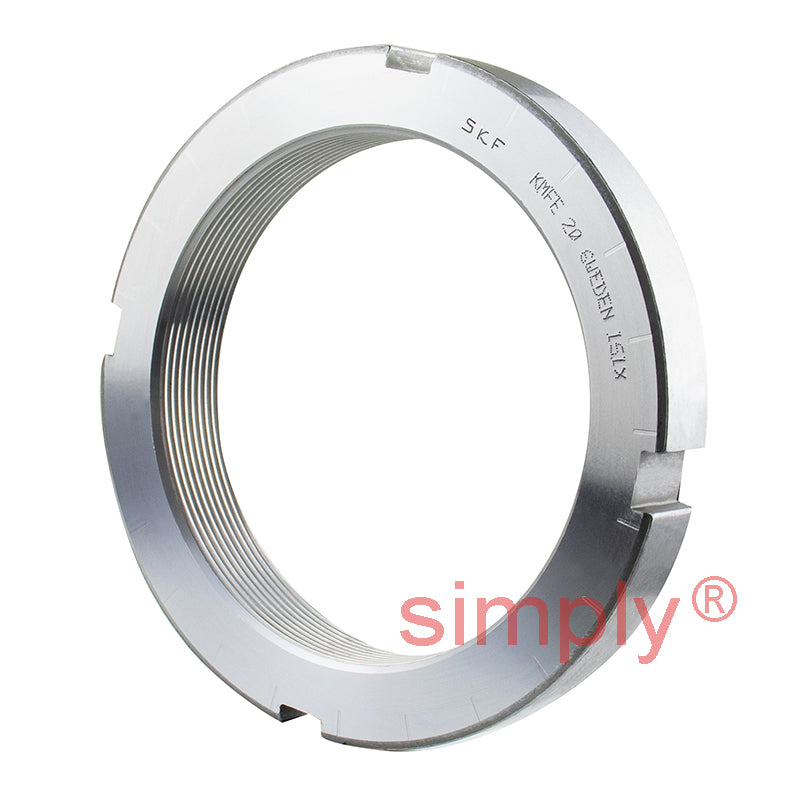

SKF KMFE20 Lock Nut with Locking Screw M100x2mm
SKF KMFE20 Lock Nut with Locking Screw M100x2mm
Regular price
$112.57
ex VAT
Regular price
Sale price
$112.57
ex VAT
In stock
Price Break
10+
$100.19
19+
$94.56
29+
$93.43
39+
$92.31
49+
$91.18
74+
$90.06
99+
$84.43
199+
$83.30
249+
$82.18
499+
$81.05
999+
$78.80
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M100x2
Technical
Technical
| d1 | 112mm |
|---|---|
| d3 | 130mm |
| B | 21mm |
| B1 | 17mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 255 kN |
| Looseing torque | 370 Nm |
| Weight | 0.71 kg |
| G | M100x2 |
| Designation | KMFE20 |
| Spanner | HN20 |
| Grub | M8 |
| Screw tightening torque | 18 Nm |
