SKU: KBS40-PP-AS-INA

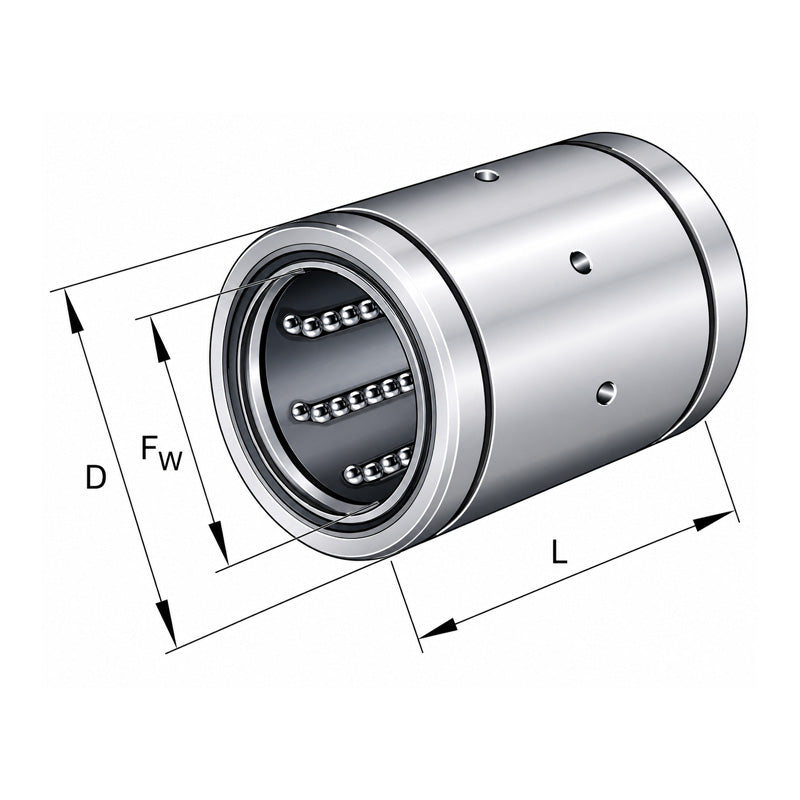

INA KBS40PPAS Relubricatable Linear Ball Bushing with Contact Seals 40x62x80mm
INA KBS40PPAS Relubricatable Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
$254.93
ex VAT
Regular price
Sale price
$254.93
ex VAT
In stock
Price Break
3+
$120.40
5+
$113.64
10+
$112.28
15+
$110.93
20+
$109.58
30+
$108.22
40+
$101.46
50+
$100.11
60+
$98.75
75+
$97.40
100+
$94.70
Description
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
