SKU: KBS40-INA
INA KBS40 Linear Ball Bushing 40x62x80mm
INA KBS40 Linear Ball Bushing 40x62x80mm
Regular price
$230.35
ex VAT
Regular price
Sale price
$230.35
ex VAT
In stock
Price Break
10+
$205.01
19+
$193.49
29+
$191.19
39+
$188.89
49+
$186.58
74+
$184.28
99+
$172.76
199+
$170.46
249+
$168.16
499+
$165.85
999+
$161.25
Couldn't load pickup availability
Description
Description
|

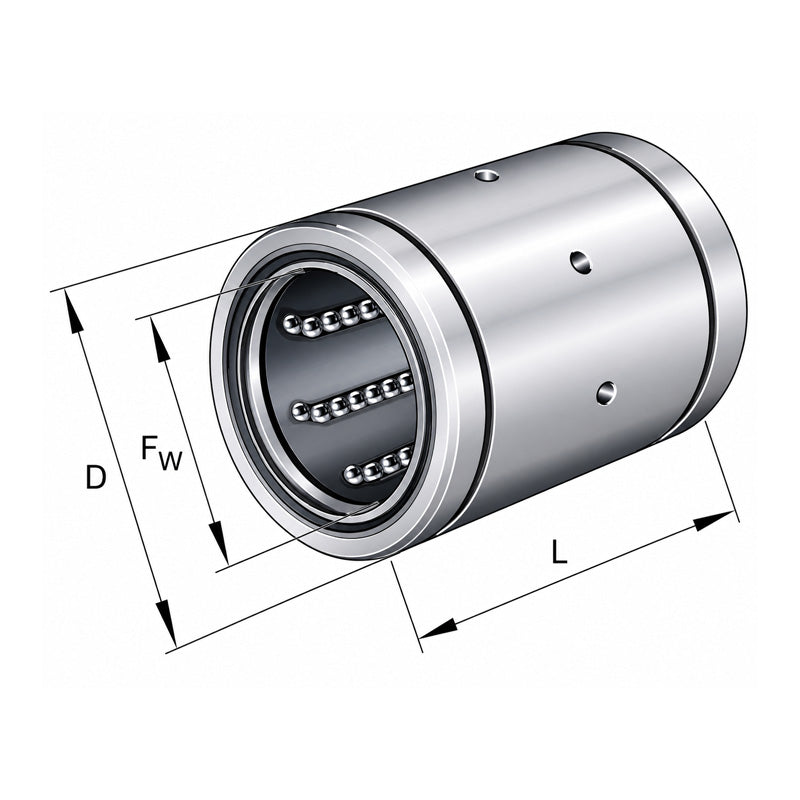

INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
