SKU: KBS25-PP-AS-INA

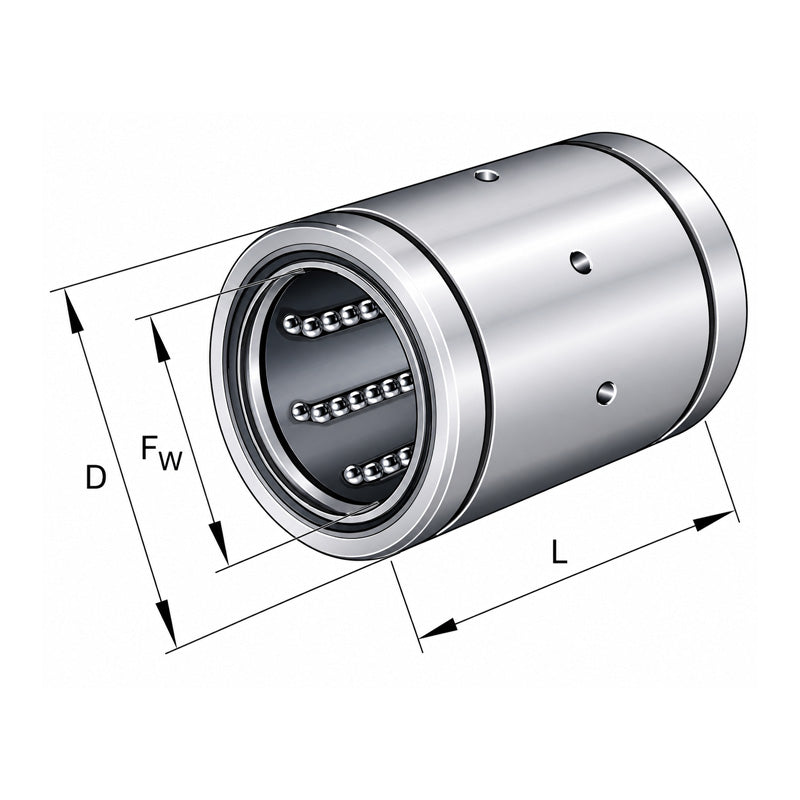

INA KBS25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
INA KBS25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
Regular price
$174.97
ex VAT
Regular price
Sale price
$174.97
ex VAT
In stock
Price Break
3+
$82.64
5+
$77.99
10+
$77.07
15+
$76.14
20+
$75.21
30+
$74.28
40+
$69.64
50+
$68.71
60+
$67.78
75+
$66.85
100+
$65.00
Description
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| Mass | 0.19 kg |
| Basic dynamic load rating C min | 2800 N |
| Basic static load rating C0 min | 2220 N |
| Basic dynamic load rating C max | 2950 N |
| Basic static load rating C0 max | 2850 N |
