SKU: KBS25-INA

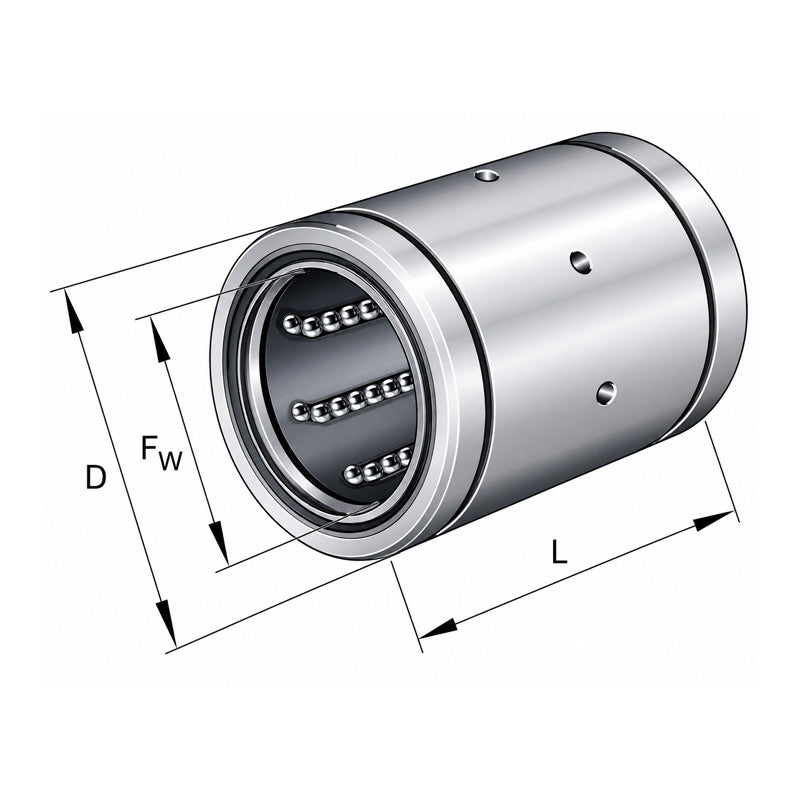

INA KBS25 Linear Ball Bushing 25x40x58mm
INA KBS25 Linear Ball Bushing 25x40x58mm
Regular price
$151.21
ex VAT
Regular price
Sale price
$151.21
ex VAT
In stock
Price Break
3+
$71.41
5+
$67.40
10+
$66.60
15+
$65.80
20+
$64.99
30+
$64.19
40+
$60.18
50+
$59.38
60+
$58.58
75+
$57.77
100+
$56.17
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| Mass | 0.19 kg |
| Basic dynamic load rating C min | 2800 N |
| Basic static load rating C0 min | 2220 N |
| Basic dynamic load rating C max | 2950 N |
| Basic static load rating C0 max | 2850 N |
