SKU: KB30-PP-AS-INA

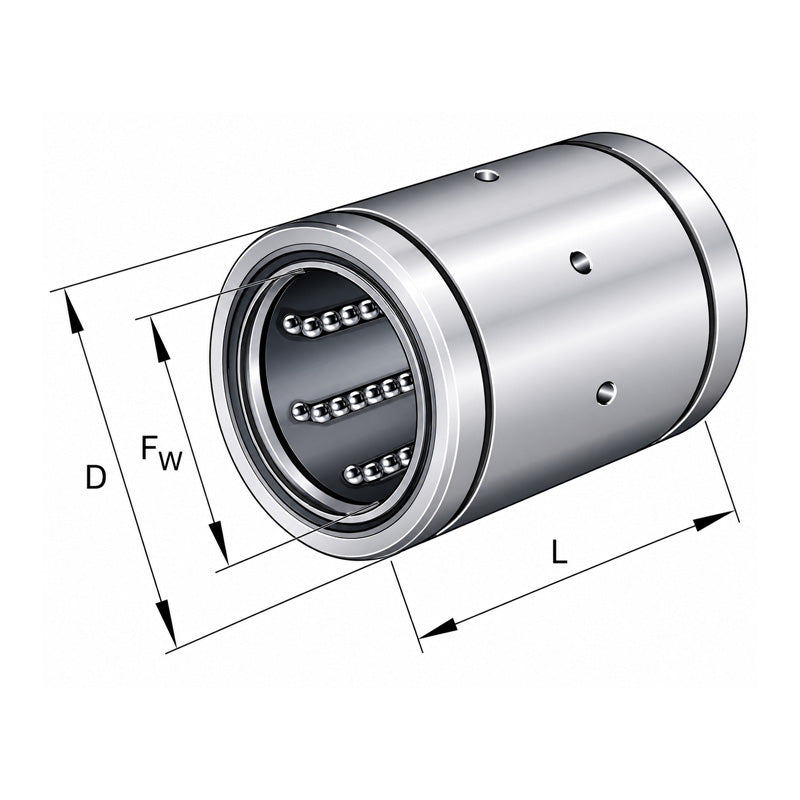

INA KB30PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 30x47x68mm
INA KB30PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
$190.16
ex VAT
Regular price
Sale price
$190.16
ex VAT
In stock
Price Break
10+
$169.24
19+
$159.73
29+
$157.83
39+
$155.93
49+
$154.03
74+
$152.13
99+
$142.62
199+
$140.72
249+
$138.82
499+
$136.92
999+
$133.11
Couldn't load pickup availability
Description
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| N2 | 2.5mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
