SKU: KB16-INA

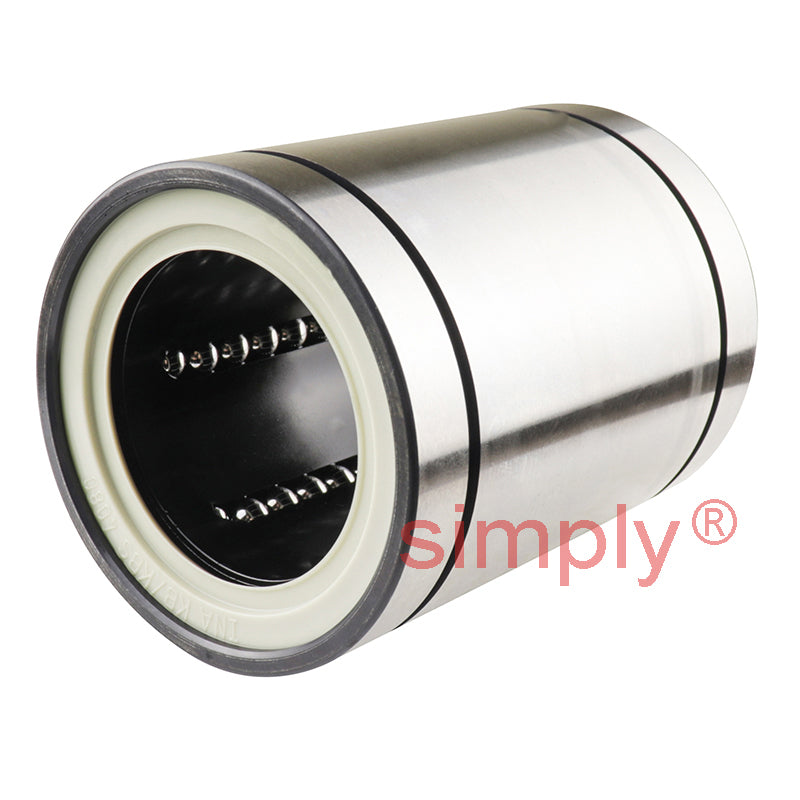

INA KB16 Closed Linear Ball Bushing with Gap Seals 16x26x36mm
INA KB16 Closed Linear Ball Bushing with Gap Seals 16x26x36mm
Regular price
$66.79
ex VAT
Regular price
Sale price
$66.79
ex VAT
In stock
Price Break
3+
$31.54
5+
$29.77
10+
$29.42
15+
$29.06
20+
$28.71
30+
$28.35
40+
$26.58
50+
$26.23
60+
$25.87
75+
$25.52
100+
$24.81
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| Numer of rows of balls | 5 |
| BL2 | 1.3mm |
| DN | 24.9mm |
| L2 | 24.6mm |
| Mass | 0.05 kg |
| Basic dynamic load rating C min | 710 N |
| Basic static load rating C0 min | 530 N |
| Basic dynamic load rating C max | 840 N |
| Basic static load rating C0 max | 780 N |
