SKU: K81213T2-NTN

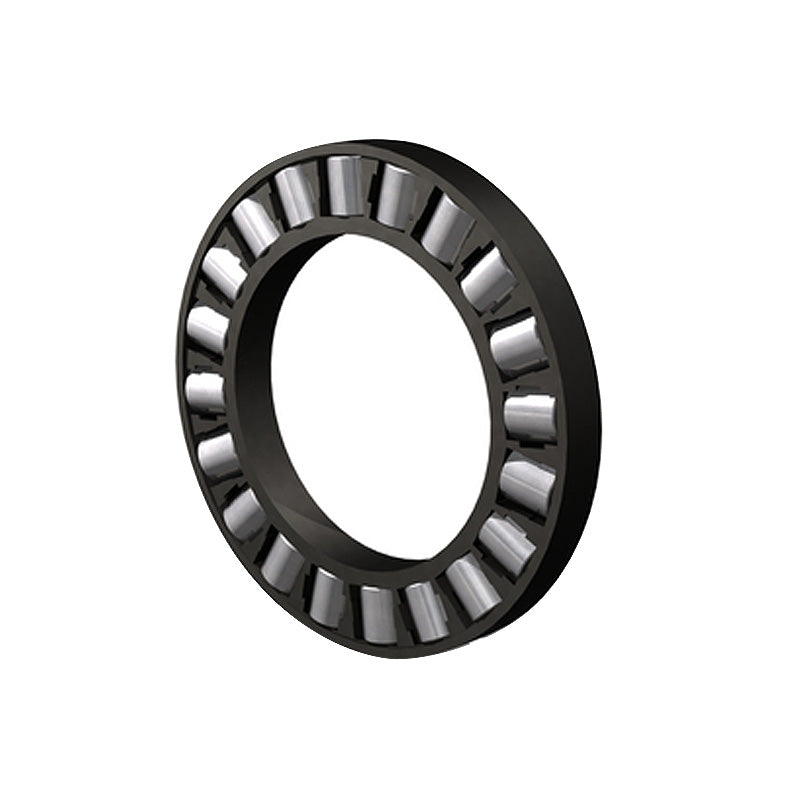

NTN K81213T2 Needle Roller Cage Only 65x100x11mm - Allow 2-3 Days
NTN K81213T2 Needle Roller Cage Only 65x100x11mm - Allow 2-3 Days
Regular price
$66.14
ex VAT
Regular price
Sale price
$66.14
ex VAT
In stock
Price Break
5+
$65.48
10+
$62.83
20+
$61.51
50+
$59.53
100+
$58.20
500+
$54.90
1000+
$46.30
Couldn't load pickup availability
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 11mm
Technical
Technical
| Dc1 - Inside diameter | 65mm |
|---|---|
| Dc - Outside diameter | 100mm |
| Dw - Roller Width | 11mm |
| WS inner ring reference | WS81213 |
| GS outer ring reference | GS81213 |
| Ea - Rollers reference outer diameter | 93.3mm |
| Eb - Rollers reference inner diameter | 69.9mm |
| Ca - Dynamic axial load rating | 130 kN |
| C0a - Static axial load rating | 385 kN |
| Cua - Limit axial load rating | 47 kN |
| Grease lubrication limit speed | 730 tr/min |
| Oil lubrication limit speed | 2900 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
