SKU: K42x47x13-MB

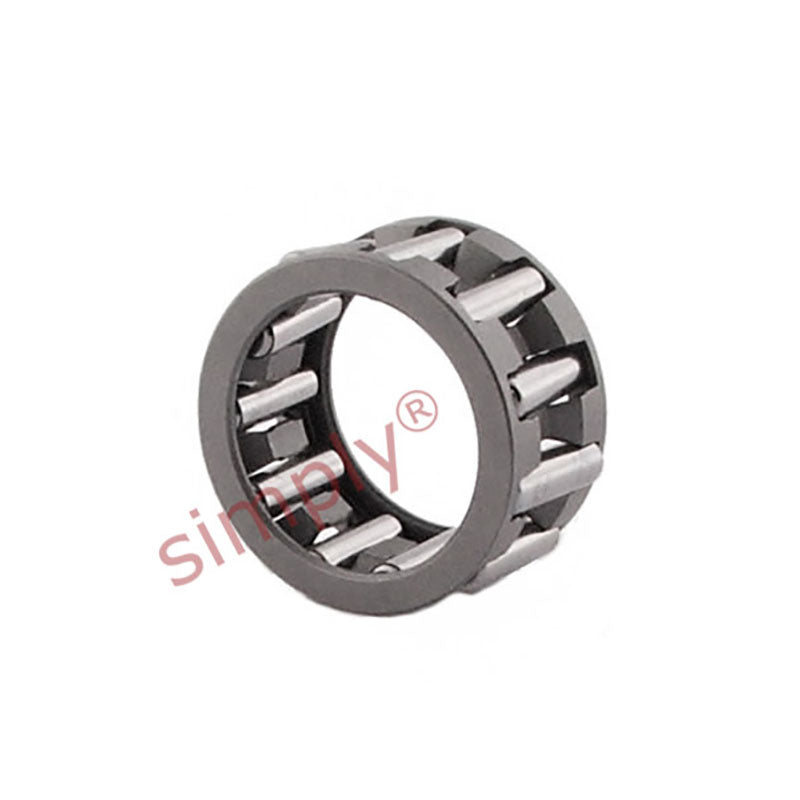

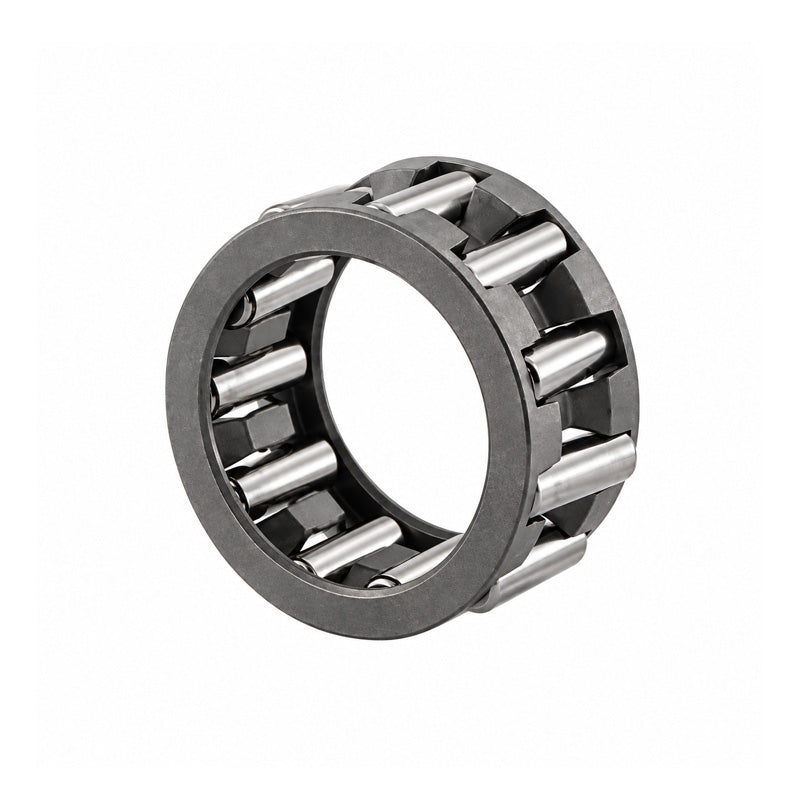

Major Brand K42x47x13 Needle Roller Cage Assembly 42x47x13mm
Major Brand K42x47x13 Needle Roller Cage Assembly 42x47x13mm
Regular price
$29.02
ex VAT
Regular price
Sale price
$29.02
ex VAT
In stock
Price Break
10+
$25.83
19+
$24.38
29+
$24.09
39+
$23.80
49+
$23.51
74+
$23.22
99+
$21.77
199+
$21.47
249+
$21.18
499+
$20.89
999+
$20.31
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 47mm
- Width:
- 13mm
Technical
Technical
| Fw | 42mm |
|---|---|
| Ew | 47mm |
| U | 13mm |
| Dynamic load | 17200 N |
| Static load | 33500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| Weight | 18 g |
