SKU: K35x42x18-MB

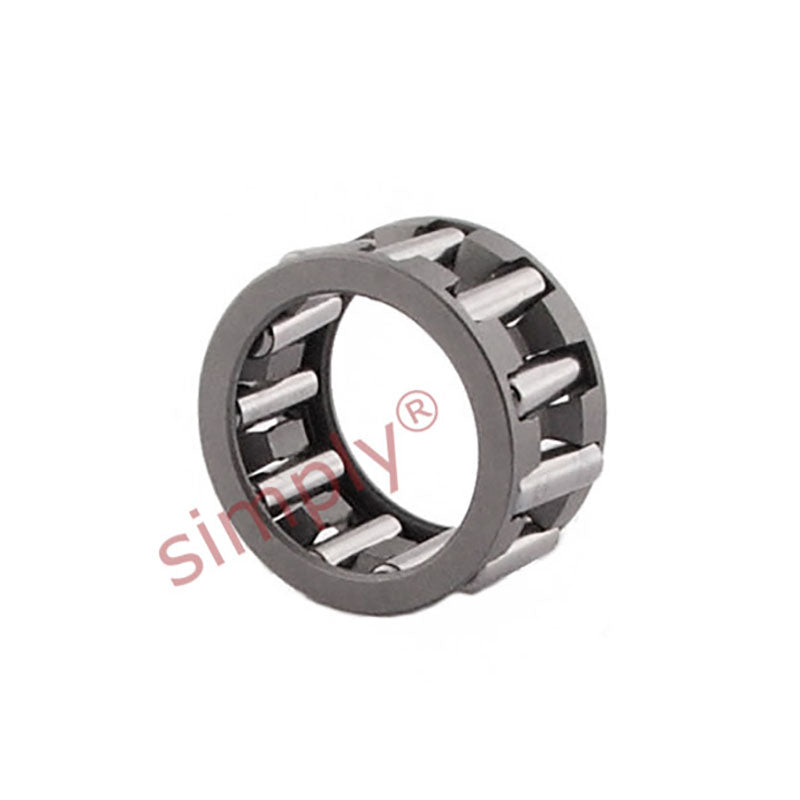

Major Brand K35x42x18 Needle Roller Cage Assembly 35x42x18mm
Major Brand K35x42x18 Needle Roller Cage Assembly 35x42x18mm
Regular price
$16.56
ex VAT
Regular price
Sale price
$16.56
ex VAT
Equivalent to: KT354218
In stock
Price Break
10+
$7.82
19+
$7.38
29+
$7.30
39+
$7.21
49+
$7.12
74+
$7.03
99+
$6.59
199+
$6.50
249+
$6.42
499+
$6.33
999+
$6.15
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT354218
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 42mm
- Width:
- 18mm
Technical
Technical
| Fw | 35mm |
|---|---|
| Ew | 42mm |
| U | 18mm |
| Dynamic load | 26400 N |
| Static load | 44000 N |
| Fatigue load limit Pu | 5300 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| Seal | G/SD35x42x4 |
| Weight | 34 g |
