SKU: K35x42x16-MB

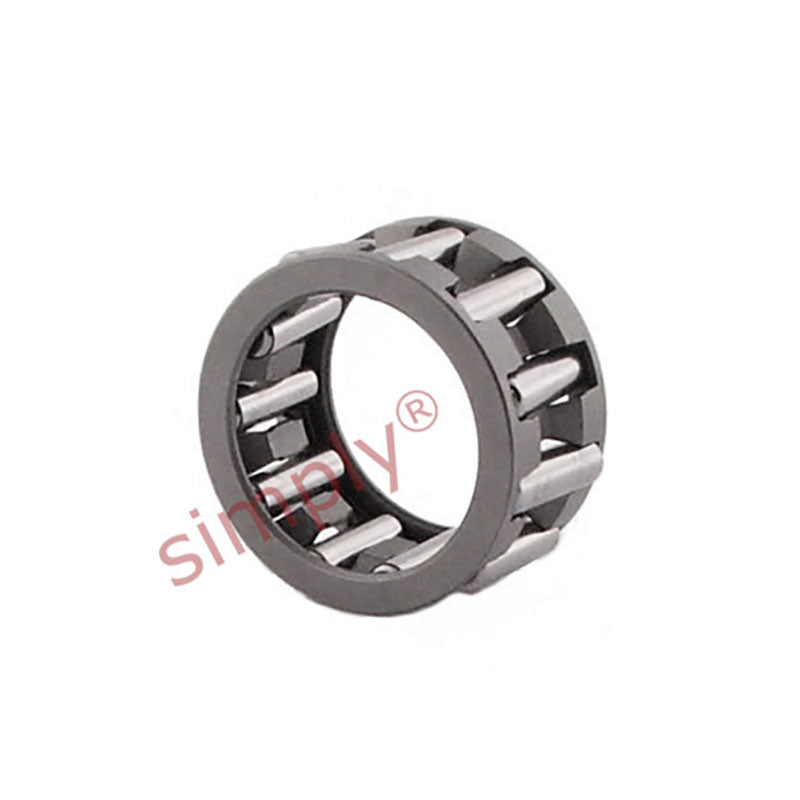

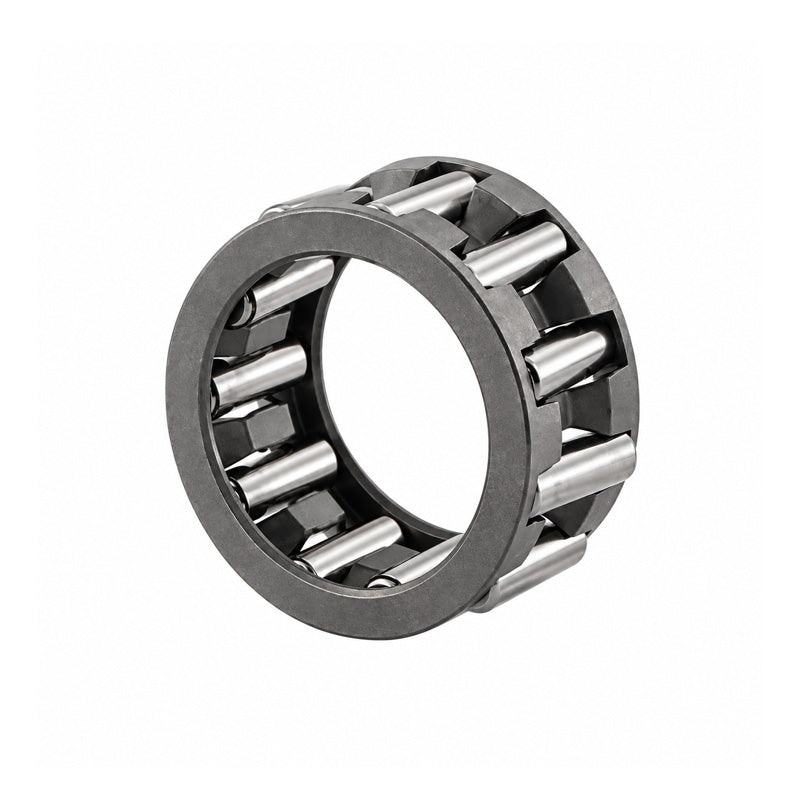

Major Brand K35x42x16 Needle Roller Cage Assembly 35x42x16mm
Major Brand K35x42x16 Needle Roller Cage Assembly 35x42x16mm
Regular price
$16.11
ex VAT
Regular price
Sale price
$16.11
ex VAT
Equivalent to: KT354216
In stock
Price Break
10+
$14.34
19+
$13.53
29+
$13.37
39+
$13.21
49+
$13.05
74+
$12.89
99+
$12.08
199+
$11.92
249+
$11.76
499+
$11.60
999+
$11.28
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT354216
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 42mm
- Width:
- 16mm
Technical
Technical
| Fw | 35mm |
|---|---|
| Ew | 42mm |
| U | 16mm |
| Dynamic load | 23300 N |
| Static load | 37500 N |
| Fatigue load limit Pu | 4500 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| Seal | G/SD35x42x4 |
| Weight | 34 g |
