SKU: K35x40x25-MB

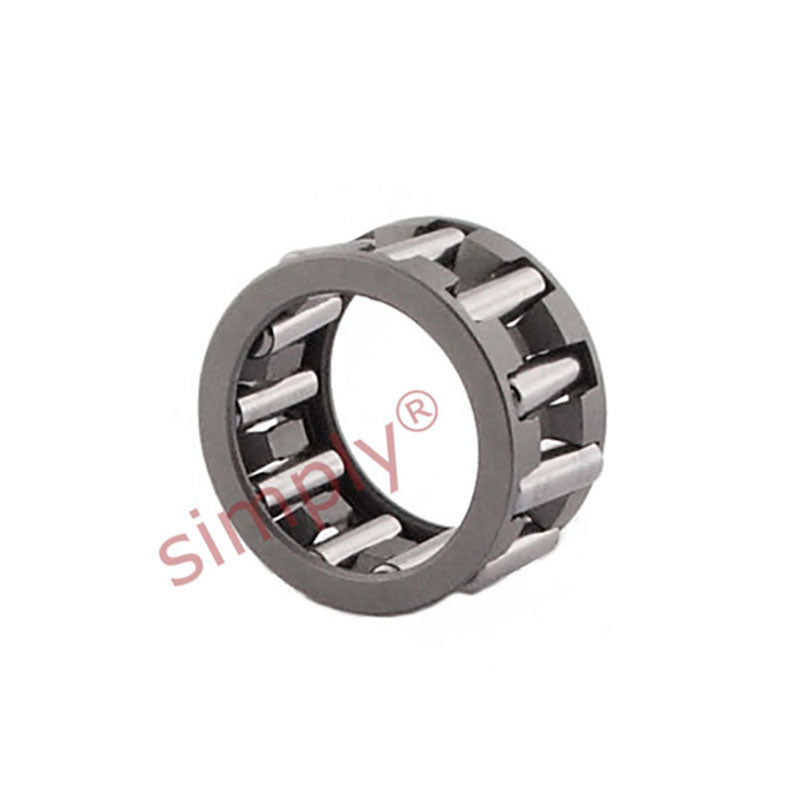

Major Brand K35x40x25 Needle Roller Cage Assembly 35x40x25mm
Major Brand K35x40x25 Needle Roller Cage Assembly 35x40x25mm
Regular price
$29.63
ex VAT
Regular price
Sale price
$29.63
ex VAT
In stock
Price Break
10+
$26.37
19+
$24.89
29+
$24.59
39+
$24.30
49+
$24.00
74+
$23.70
99+
$22.22
199+
$21.93
249+
$21.63
499+
$21.33
999+
$20.74
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 40mm
- Width:
- 25mm
Technical
Technical
| Fw | 35mm |
|---|---|
| Ew | 40mm |
| U | 25mm |
| Dynamic load | 28100 N |
| Static load | 60000 N |
| Fatigue load limit Pu | 7350 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| Weight | 31 g |
