SKU: K32x37x27-MB

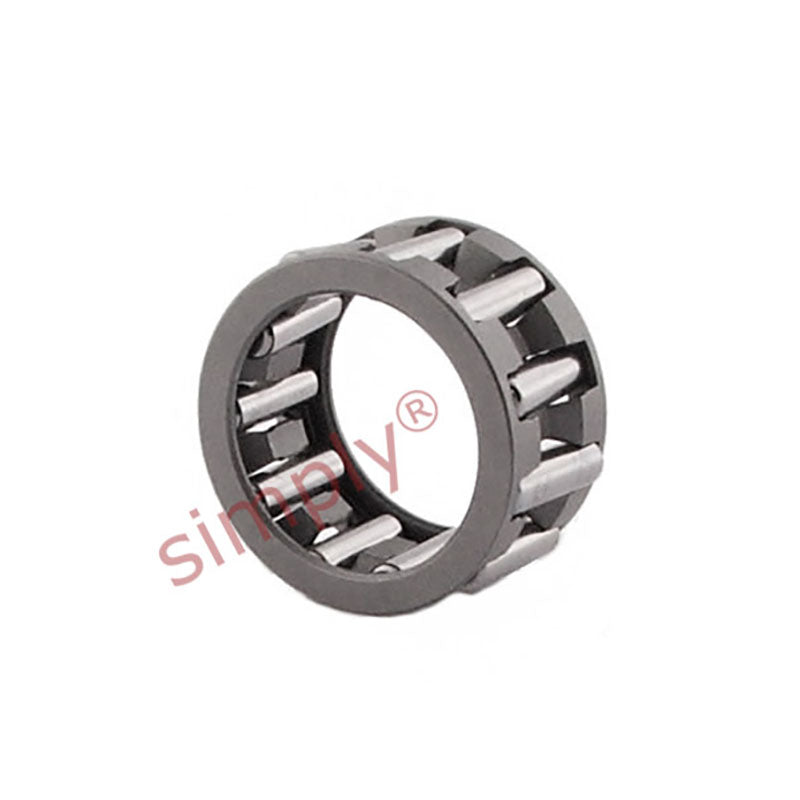

Major Brand K32x37x27 Needle Roller Cage Assembly 32x37x27mm
Major Brand K32x37x27 Needle Roller Cage Assembly 32x37x27mm
Regular price
$13.51
ex VAT
Regular price
Sale price
$13.51
ex VAT
In stock
Price Break
10+
$6.38
19+
$6.02
29+
$5.95
39+
$5.88
49+
$5.81
74+
$5.74
99+
$5.38
199+
$5.31
249+
$5.23
499+
$5.16
999+
$5.02
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 37mm
- Width:
- 27mm
Technical
Technical
| Fw | 32mm |
|---|---|
| Ew | 37mm |
| U | 27mm |
| Dynamic load | 28600 N |
| Static load | 60000 N |
| Fatigue load limit Pu | 7350 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| Weight | 30 g |
