SKU: K32x37x13-MB

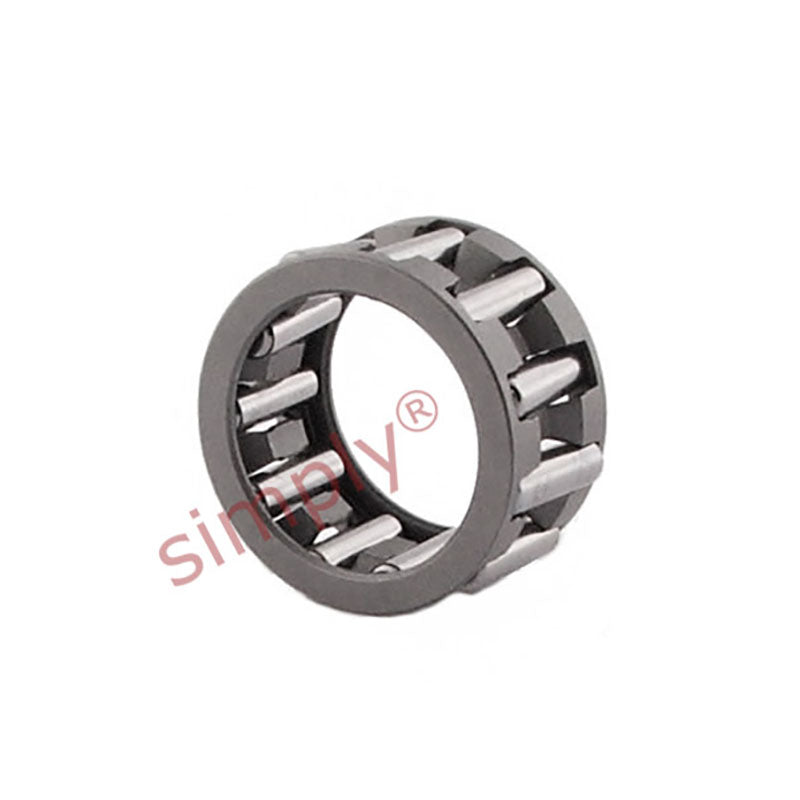

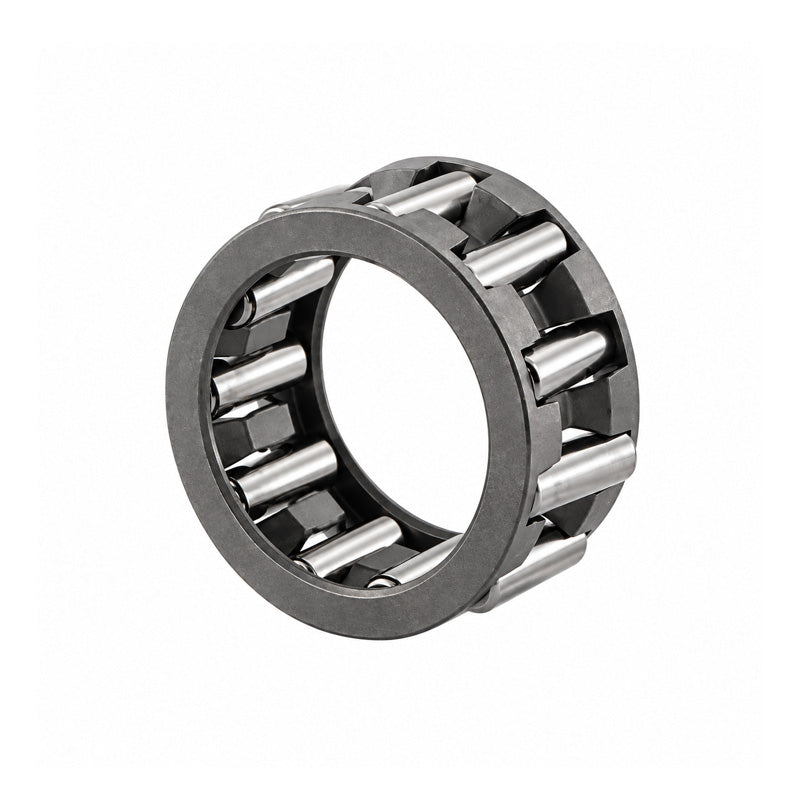

Major Brand K32x37x13 Needle Roller Cage Assembly 32x37x13mm
Major Brand K32x37x13 Needle Roller Cage Assembly 32x37x13mm
Regular price
$17.79
ex VAT
Regular price
Sale price
$17.79
ex VAT
Equivalent to: KT323713
In stock
Price Break
10+
$15.83
19+
$14.94
29+
$14.77
39+
$14.59
49+
$14.41
74+
$14.23
99+
$13.34
199+
$13.16
249+
$12.99
499+
$12.81
999+
$12.45
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT323713
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 37mm
- Width:
- 13mm
Technical
Technical
| Fw | 32mm |
|---|---|
| Ew | 37mm |
| U | 13mm |
| Dynamic load | 14700 N |
| Static load | 25500 N |
| Fatigue load limit Pu | 3000 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| Weight | 18 g |
