SKU: K18X23X20S-NTN

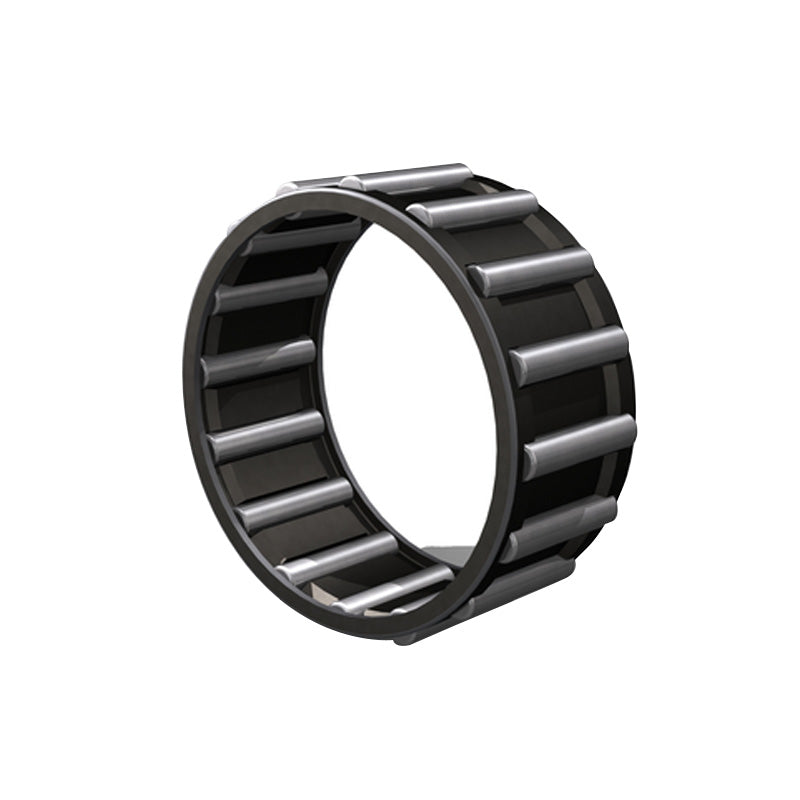

NTN K18X23X20S Needle Roller and Cage Assembly 18x23x20mm - Allow 2-3 Days
NTN K18X23X20S Needle Roller and Cage Assembly 18x23x20mm - Allow 2-3 Days
Regular price
$13.91
ex VAT
Regular price
Sale price
$13.91
ex VAT
Low stock
Price Break
3+
$6.57
4+
$6.20
9+
$6.13
19+
$6.05
49+
$5.98
99+
$5.90
499+
$5.54
999+
$5.46
1999+
$5.39
2999+
$5.31
4999+
$5.17
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 23mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 18mm |
|---|---|
| Ew - Outside diameter | 23mm |
| Bc - Cage width | 20mm |
| Cr - Dynamic load rating | 14.6 kN |
| C0r - Static load rating | 19.3 kN |
| N - Grease lubrication limit speed | 14000 tr/min |
| N - Oil lubrication limit speed | 21000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
