SKU: K16x24x20-MB

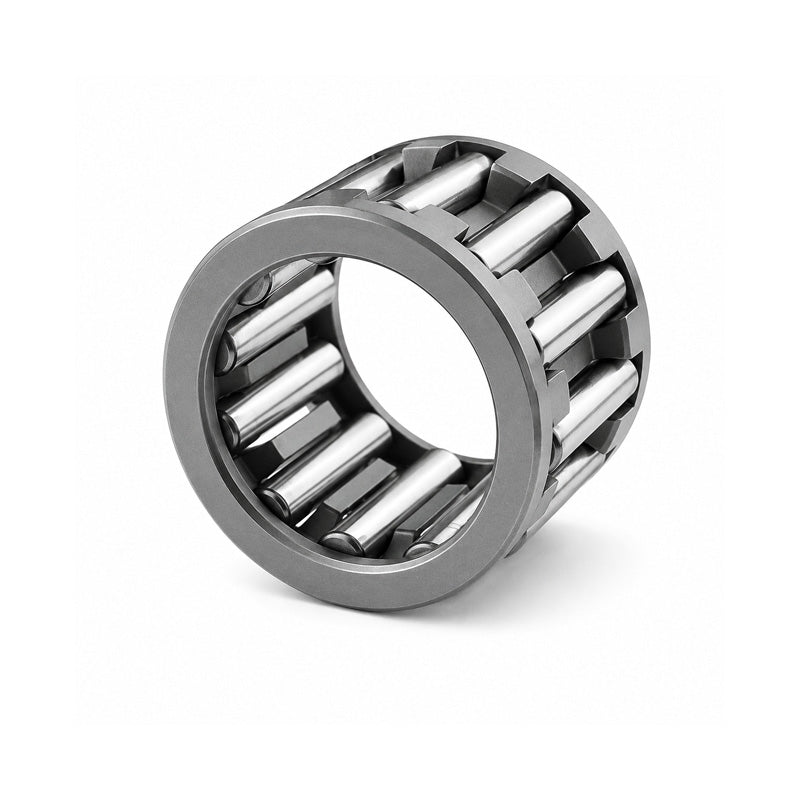

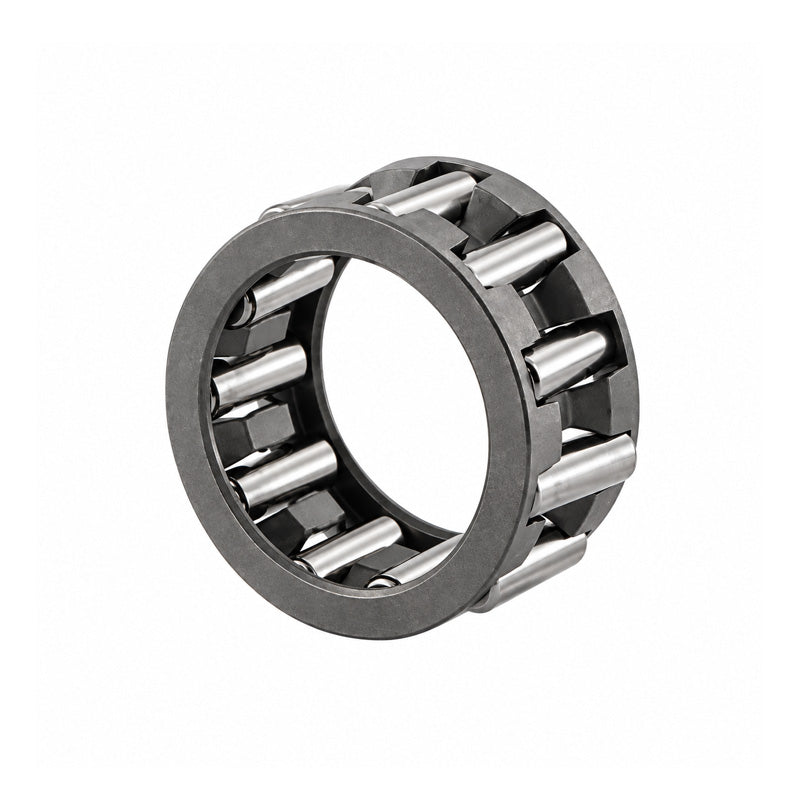

Major Brand K16x24x20 Needle Roller Cage Assembly 16x24x20mm
Major Brand K16x24x20 Needle Roller Cage Assembly 16x24x20mm
Regular price
$13.74
ex VAT
Regular price
Sale price
$13.74
ex VAT
In stock
Price Break
10+
$6.49
19+
$6.12
29+
$6.05
39+
$5.98
49+
$5.90
74+
$5.83
99+
$5.47
199+
$5.39
249+
$5.32
499+
$5.25
999+
$5.10
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| Fw | 16mm |
|---|---|
| Ew | 24mm |
| U | 20mm |
| Dynamic load | 20500 N |
| Static load | 23600 N |
| Fatigue load limit Pu | 2900 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| Seal | G/SD16x24x3 |
| Weight | 22 g |
