SKU: K16x20x22.5-MB

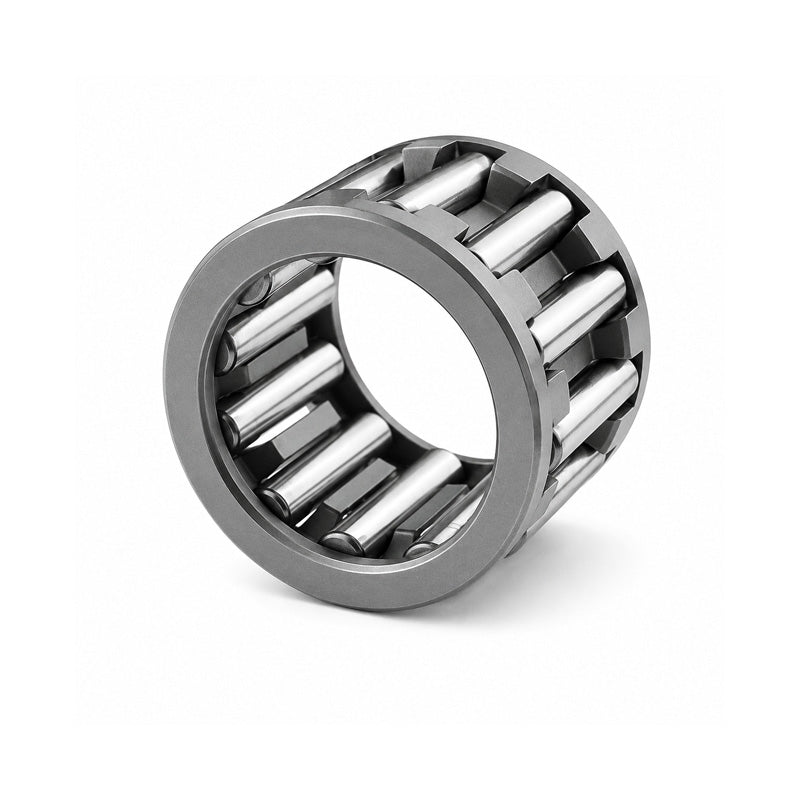

Major Brand K16x20x22.5 Needle Roller Cage Assembly 16x20x22.5mm
Major Brand K16x20x22.5 Needle Roller Cage Assembly 16x20x22.5mm
Regular price
$15.96
ex VAT
Regular price
Sale price
$15.96
ex VAT
In stock
Price Break
10+
$7.54
19+
$7.11
29+
$7.03
39+
$6.95
49+
$6.86
74+
$6.78
99+
$6.35
199+
$6.27
249+
$6.18
499+
$6.10
999+
$5.93
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 20mm
- Width:
- 22.5mm
Technical
Technical
| Fw | 16mm |
|---|---|
| Ew | 20mm |
| U | 22.5mm |
| Dynamic load | 11200 N |
| Static load | 17000 N |
| Fatigue load limit Pu | 2000 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| Weight | 10 g |
